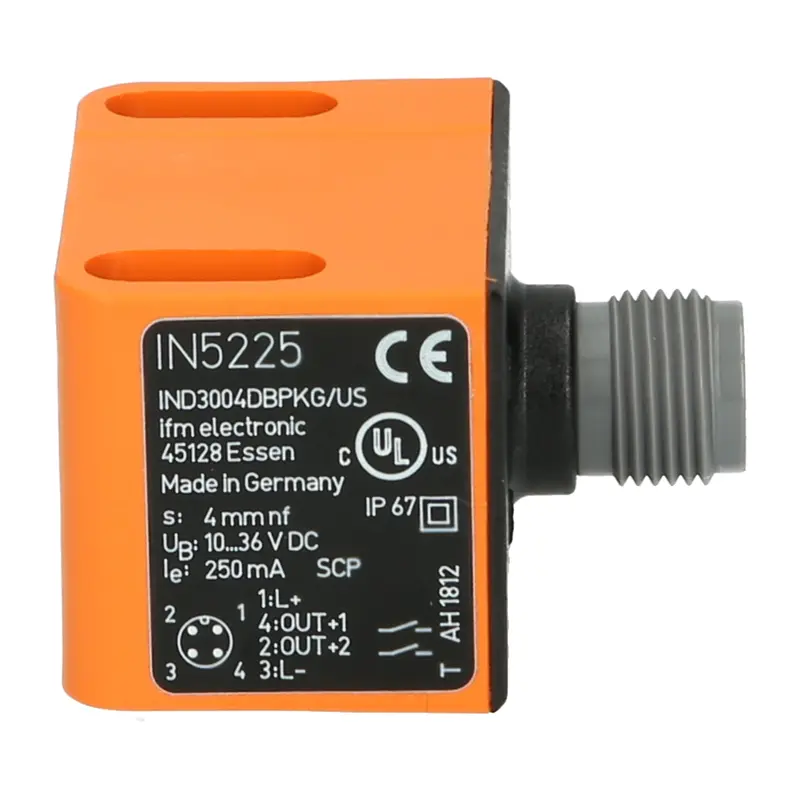

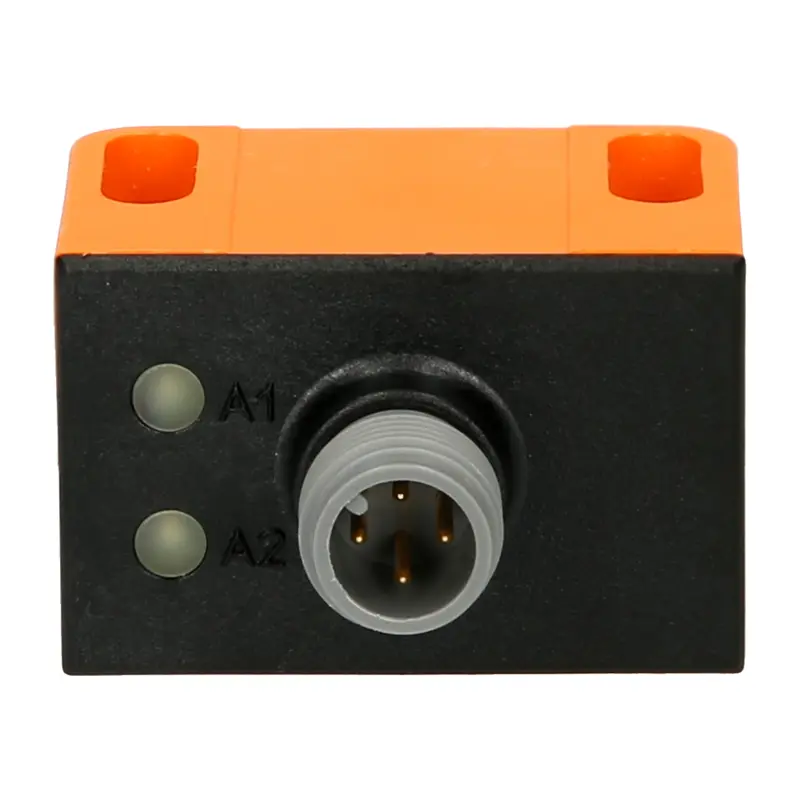

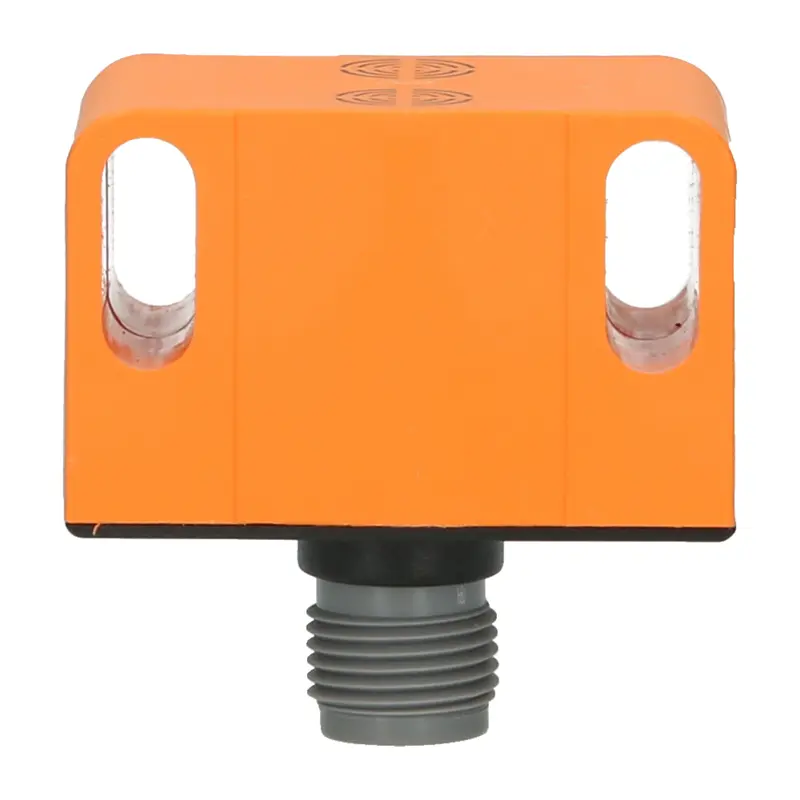

Inductive dual sensor ifm electronic IN5225 - IND3004DBPKG/US-100-DPV
Inductive dual sensor ifm electronic IN5225 - IND3004DBPKG/US-100-DPV
Inductive dual sensor ifm electronic IN5225 - IND3004DBPKG/US-100-DPV
Inductive dual sensor ifm electronic IN5225 - IND3004DBPKG/US-100-DPV
Inductive dual sensor ifm electronic IN5225 - IND3004DBPKG/US-100-DPV
Inductive dual sensor ifm electronic IN5225 - IND3004DBPKG/US-100-DPV
Inductive dual sensor ifm electronic IN5225 - IND3004DBPKG/US-100-DPV
Inductive dual sensor ifm electronic IN5225 - IND3004DBPKG/US-100-DPV

Inductive dual sensor ifm electronic IN5225 - IND3004DBPKG/US-100-DPV

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 104419

EAN : 4021179134880

  • Inductive dual sensor
  • Sn = 4 mm [nf]
  • 2 x NO
  • DC PNP
  • 1,300 Hz
  • Dimensions: 40 x 26 x 26 mm
  • Protection rating: IP67
  • Temperature range: -25-80 °C
  • M12 connector

₹ 29,500

in stock img

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IND
Installation
Non flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
4 mm
Type
Rectangular
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
36 V
Type of voltage
DC
Output
PNP
The current the unit can be subjected to in continuous operation.
Output current max.
250 mA
Output function
2 x NO
The maximum number of times the switching output can change within one second.
Switching frequency
1300 Hz
Protection against overcurrent
Short-circuit protection
Yes
Protective function for reverse polarity of the connection cable.
Reverse polarity protection
Yes
Connection principle
3-wire
Mechanical data
Size
40 x 26 x 26 mm
Connection
Connector M12
Material of the sensing face
PBT
Housing material
PBT
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-25 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
80 °C
according to DIN EN 60529
Protection rating
IP67
Application
Valve actuators
Further information
Approval
CE
cULus
UKCA
Special features
None
Inductive dual sensor ifm electronic IN5225 - IND3004DBPKG/US-100-DPV

The IN5225 - IND3004DBPKG/US-100-DPV inductive dual sensor from ifm electronic, for monitoring the position of valves and dampers as well as the position notification, operates with a supply voltage of 10 to 36 V DC. Thanks to the high protection rating IP67 and the temperature range of -25 to 80 °C, the sensor with a sensing range of 4 mm with non-flush installation is the optimum proximity switch for use with rotary actuators. The IN5225 - IND3004DBPKG/US-100-DPV inductive dual sensor is shock and vibration resistant.
