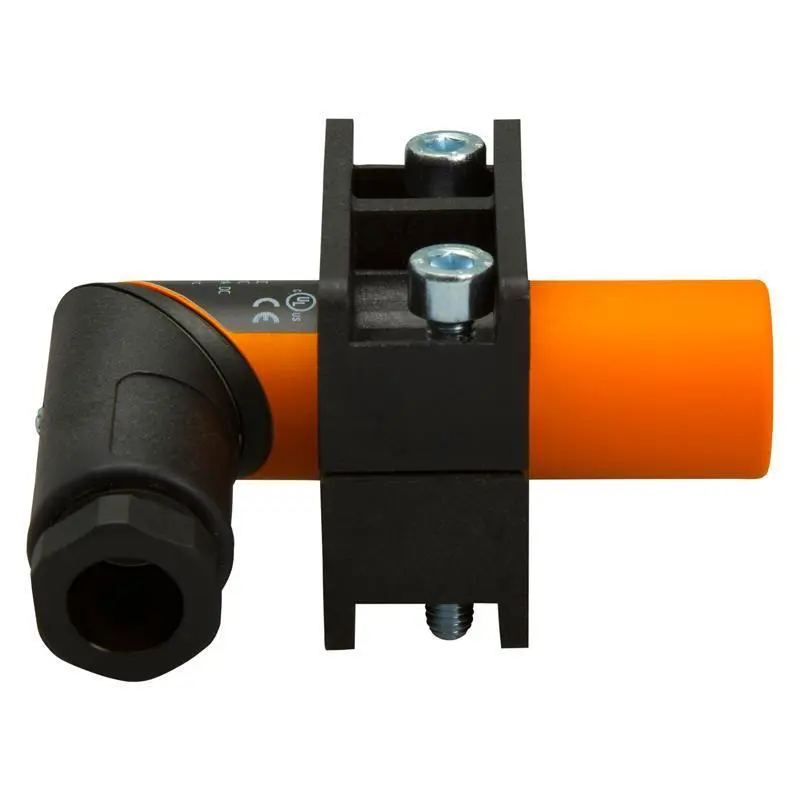

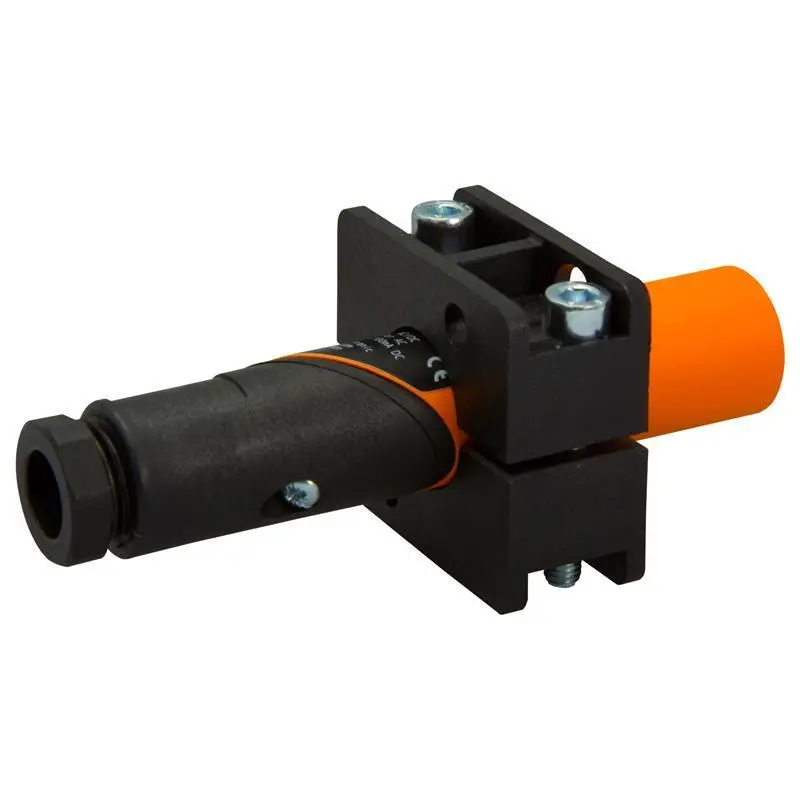

Inductive sensor ifm electronic IA0032 - IAE2010-FBOA
Inductive sensor ifm electronic IA0032 - IAE2010-FBOA
Inductive sensor ifm electronic IA0032 - IAE2010-FBOA
Inductive sensor ifm electronic IA0032 - IAE2010-FBOA
Inductive sensor ifm electronic IA0032 - IAE2010-FBOA
Inductive sensor ifm electronic IA0032 - IAE2010-FBOA

Inductive sensor ifm electronic IA0032 - IAE2010-FBOA

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 100000

EAN : 4021179075923

  • Inductive sensor Ø 20 mm
  • Sn = 10 mm [nf]
  • NC/NO programmable
  • 20-250 V AC/DC
  • Protection rating: IP65
  • Connection terminal up to 2.5 mm²
  • Incl. mounting clamp

₹ 19,500

in stock img

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IA
Installation
Non flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
10 mm
Type
Cylindrical and smooth
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
20 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
250 V
Type of voltage
AC/DC
Output current max.
350 AC (...50 °C)/250 AC (...80 °C)/100 DC mA
Output function
NO/NC programmable
The maximum number of times the switching output can change within one second.
Switching frequency
25 Hz
Connection principle
2-wire
Mechanical data
Size
Ø 20 mm
Total length
92 mm
Connection
Terminal block
Material of the sensing face
PBT
Housing material
PBT
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-25 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
80 °C
according to DIN EN 60529
Protection rating
IP65
Application
Factory automation
Further information
Approval
CE
cULus
UKCA
CCC
Special features
None
Accessories (supplied)
Mounting clamp
Inductive sensor ifm electronic IA0032 - IAE2010-FBOA

The inductive sensor IA0032 - IAE2010-FBOA from ifm operates as dual voltage design with 20-250 V AC/DC. The NC or NO output function can be selected via a wire bridge. Thanks to the 2-wire connection and the sensing range of 10 mm with non-flush installation the inductive sensor IA0032 - IAE2010-FBOA is found in many applications such as car wash lines and conveying systems s limit switch. The mounting clamp supplied with the unit ensures easy and fast installation of the proximity switch. Cabling can be quickly adapted using the end cap that can be angled by 90°.
