Inductive sensor ifm electronic IB5063 - IBE3020-FPKG
Inductive sensor ifm electronic IB5063 - IBE3020-FPKG
Inductive sensor ifm electronic IB5063 - IBE3020-FPKG
Inductive sensor ifm electronic IB5063 - IBE3020-FPKG
Inductive sensor ifm electronic IB5063 - IBE3020-FPKG
Inductive sensor ifm electronic IB5063 - IBE3020-FPKG

Inductive sensor ifm electronic IB5063 - IBE3020-FPKG

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 100032

EAN : 4021179079402

  • Inductive sensor Ø 34 mm
  • Sn = 20 mm [nf]
  • NC/NO programmable
  • DC PNP
  • Protection rating: IP65
  • Connection terminals up to 2.5 mm²
  • Incl. mounting clamp

₹ 19,000

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IB
Installation
Non flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
20 mm
Type
Cylindrical and smooth
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
36 V
Type of voltage
DC
Output
PNP
Output current max.
250 mA
Output function
NO/NC programmable
The maximum number of times the switching output can change within one second.
Switching frequency
350 Hz
Provides protection against overcurrent conditions.
Short-circuit protection
Yes
Protective function in case of reversed connection of the supply line.
Reverse polarity protection
Yes
Connection principle
3-wire
Mechanical data
Size
Ø 34 mm
Total length
98 mm
Connection
Terminal block
Material of the sensing face
PBT
Housing material
PBT
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-25 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
80 °C
according to DIN EN 60529
Protection rating
IP65
Application
Factory automation
Further information
Approval
CE
cULus
UKCA
Special features
None
Accessories (supplied)
Mounting clamp

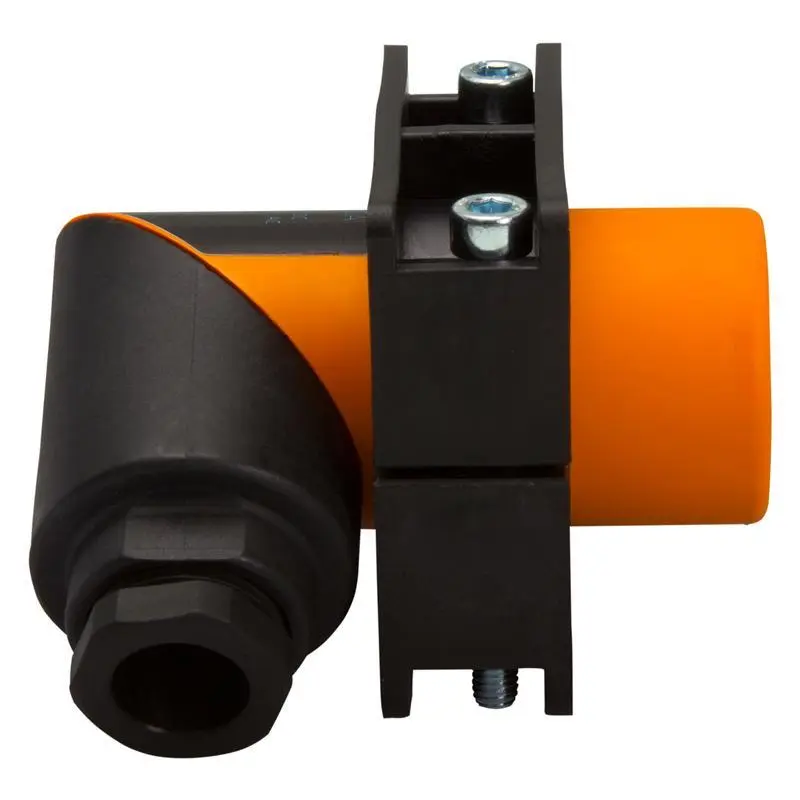

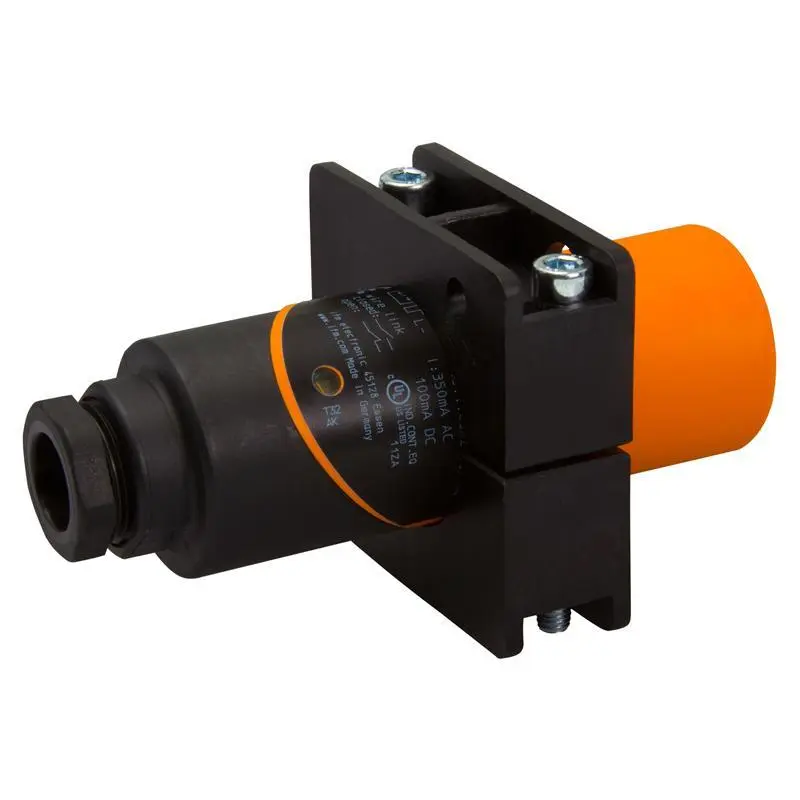

Inductive sensor ifm electronic IB5063 - IBE3020-FPKG

The inductive sensor IB5063 - IBE3020-FPKG from ifm operates with a supply voltage of 10-36 V DC. The output is positive-switching. The NC or NO output function can be selected via a wire bridge on the unit. Thanks to the sensing range of 20 mm with non-flush installation the inductive sensor IB5063 - IBE3020-FPKG is found in many applications such as conveyor systems or machine building as limit switch. The mounting clamp supplied with the unit ensures easy and fast installation of the proximity switch. Cabling can be quickly adapted using the end cap that can be angled by 90°.
