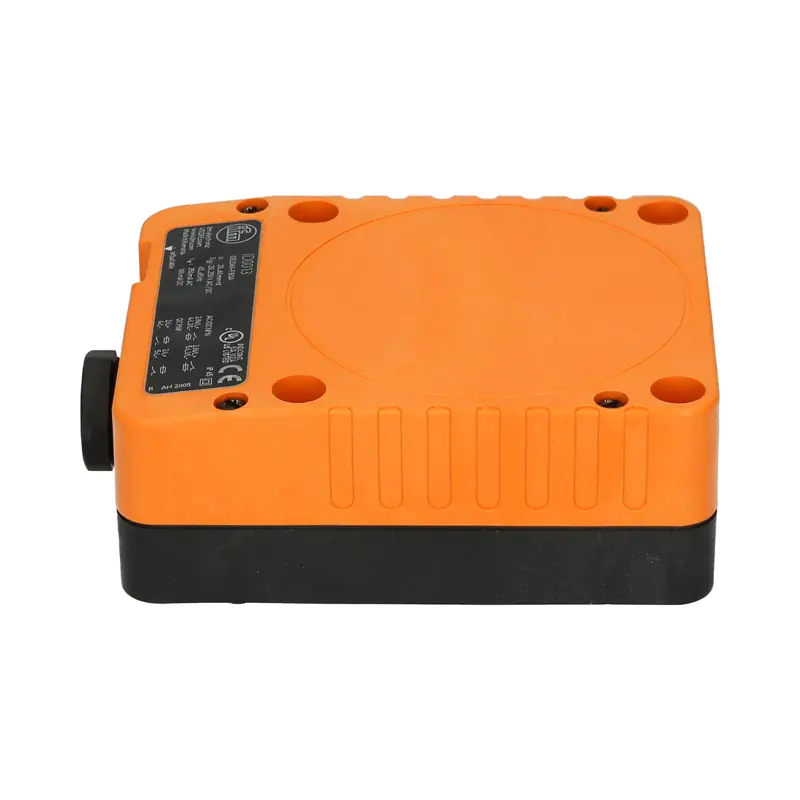

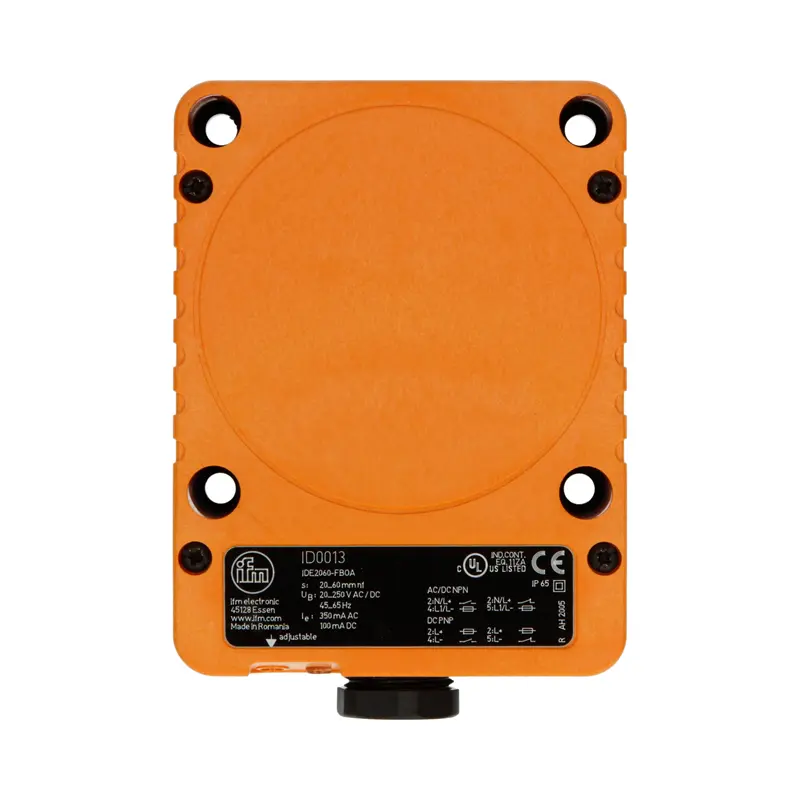

Inductive sensor ifm electronic ID0013 - IDE2060-FBOA
Inductive sensor ifm electronic ID0013 - IDE2060-FBOA
Inductive sensor ifm electronic ID0013 - IDE2060-FBOA
Inductive sensor ifm electronic ID0013 - IDE2060-FBOA
Inductive sensor ifm electronic ID0013 - IDE2060-FBOA
Inductive sensor ifm electronic ID0013 - IDE2060-FBOA

Inductive sensor ifm electronic ID0013 - IDE2060-FBOA

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 105599

EAN : 4021179080828

  • Inductive sensor
  • Cuboid
  • Sn = 60 mm [b]
  • Normally closing/normally opening programmable AC/DC
  • PNP
  • Construction length: 40 mm
  • Construction dimensions: 105 x 80 mm
  • Switching frequency: 4 Hz
  • 2 conductors
  • Protection rating: IP65
  • Terminal connection
  • Incl. drain plug

₹ 57,200

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
ID
Installation
Non flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
60 mm
Type
Rectangular
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
20 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
250 V
Type of voltage
AC/DC
Output
PNP
Output current max.
100 mA
Output function
NC
The maximum number of times the switching output can change within one second.
Switching frequency
4 Hz
Connection principle
2-wire
Protection class
II
Mechanical data
Size
105 x 80 mm
Total length
40 mm
Connection
Terminal block
Material of the sensing face
PPE
Housing material
PPE
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-25 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
80 °C
according to DIN EN 60529
Protection rating
IP65
Application
Factory automation
Further information
Approval
CE
cULus
UKCA
EAC
CCC
Special features
None
Inductive sensor ifm electronic ID0013 - IDE2060-FBOA

The cuboid inductive sensor ID0013 - IDE2060-FBOA from ifm electronic operates with a supply voltage of 20–250 AC/DC. A PNP-switching normally closed and normally open contact (programmable) is available as an output. Thanks to the design, the sensor is compatible with many mechanical limit switches when flush mounted and is therefore easy to replace in the event of maintenance. With a very high switching distance of 60 mm and the large active sensor surface, the sturdy ID0013 inductive sensor is the perfect proximity switch for use in harsh industrial environments.
