Best Selling Products:
ifm electronic

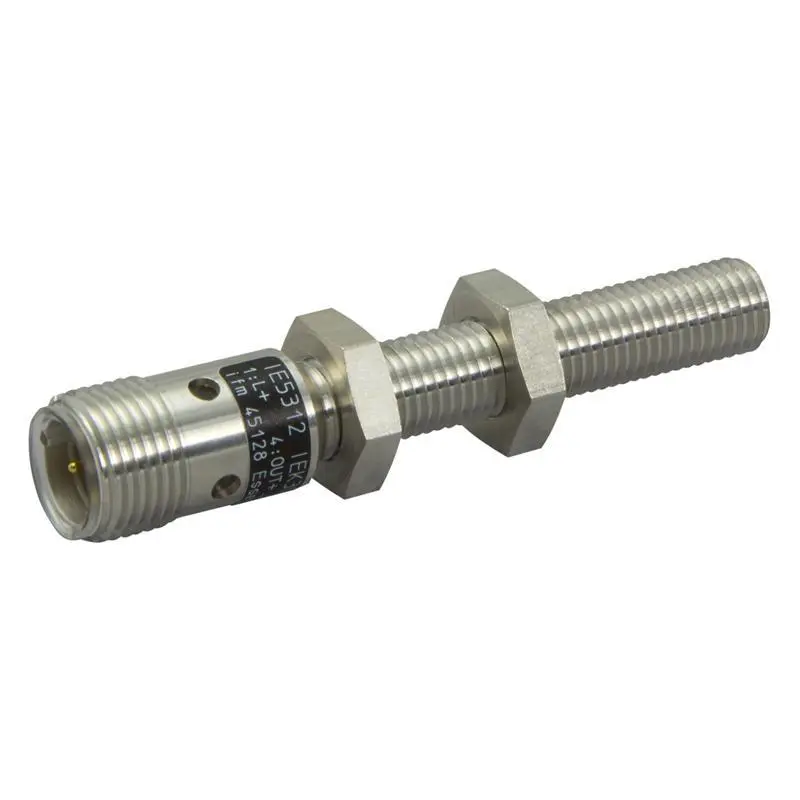

Inductive sensor ifm electronic IE5312 - IEK3002BBPKG/US
Inductive sensor ifm electronic IE5312 - IEK3002BBPKG/US
Inductive sensor ifm electronic IE5312 - IEK3002BBPKG/US
Inductive sensor ifm electronic IE5312 - IEK3002BBPKG/US

Inductive sensor ifm electronic IE5312 - IEK3002BBPKG/US

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 100017

EAN : 4021179084994

  • Inductive sensor M8 x 1
  • Sn = 2 mm [f]
  • NO
  • DC PNP
  • Protection rating: IP67
  • Temperature range: -25-70 °C
  • Switching frequency: 1,000 Hz
  • M12 connector

₹ 15,500

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IES
Installation
Flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
2 mm
Type
Cylindrical and threaded
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
36 V
Type of voltage
DC
Output
PNP
The current the unit can be subjected to in continuous operation.
Output current max.
100 mA
Output function
1 x NO
The maximum number of times the switching output can change within one second.
Switching frequency
1000 Hz
Protection against overcurrent
Short-circuit protection
Yes
Protective function for reverse polarity of the connection cable.
Reverse polarity protection
Yes
Connection principle
3-wire
Mechanical data
Size
M8 x 1
Total length
62 mm
Connection
Connector M12
Material of the sensing face
LCP
Housing material
Brass plated with white bronze
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-25 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
70 °C
according to DIN EN 60529
Protection rating
IP67
Application
Factory automation
Further information
Approval
CE
cULus
UKCA
Special features
None
Accessories (supplied)
2 fixing nuts
Inductive sensor ifm electronic IE5312 - IEK3002BBPKG/US

The inductive sensor IE5312 - IEK3002BBPKG/US from ifm operates with a supply voltage of 10-36 V DC. The output is a positive-switching NO contact. Thanks to the increased sensing range of 2 mm with flush installation the inductive sensor IE5312 - IEK3002BBPKG/US provides more reliability in your applications. Thanks to the protection rating IP67, 4-fold LED and standardised M12 connector the inductive sensor IE5312 - IEK3002BBPKG/US is often used in handling technology and in special purpose machine building.
