ifm electronic

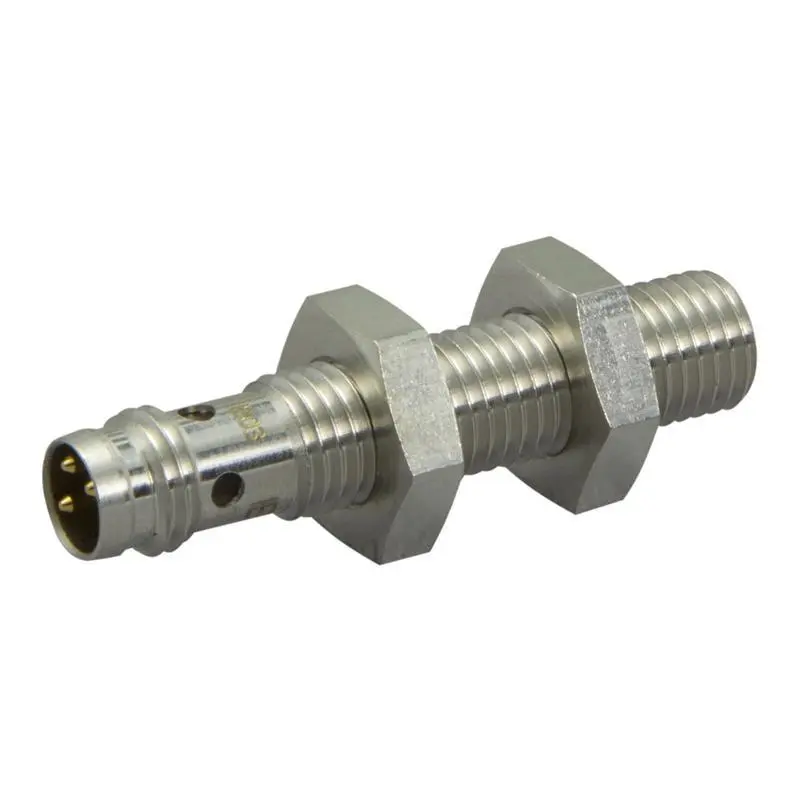

Inductive sensor ifm electronic IE5338 - IEBC003BASKG/AS
Inductive sensor ifm electronic IE5338 - IEBC003BASKG/AS
Inductive sensor ifm electronic IE5338 - IEBC003BASKG/AS
Inductive sensor ifm electronic IE5338 - IEBC003BASKG/AS

Inductive sensor ifm electronic IE5338 - IEBC003BASKG/AS

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 100015

EAN : 4021179085243

  • Inductive sensor M8 x 1
  • Sn = 3 mm [f]
  • NO
  • DC PNP/NPN
  • Protection rating: IP67
  • 2 or 3 wire connection
  • Switching frequency: 1,000 Hz
  • MM8 connector

₹ 12,000

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IES
Installation
Flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
3 mm
Type
Cylindrical and threaded
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
30 V
Type of voltage
DC
Output
PNP
PNP/NPN
Output current max.
100 mA
Output function
1 x NO
The maximum number of times the switching output can change within one second.
Switching frequency
1000 Hz
Provides protection against overcurrent conditions.
Short-circuit protection
Yes
Protective function in case of reversed connection of the supply line.
Reverse polarity protection
Yes
Connection principle
2/3-wire
Mechanical data
Size
M8 x 1
Total length
40 mm
Connection
Connector M8
Material active surface
LCP
Housing material
Brass plated with white bronze
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
0 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
60 °C
according to DIN EN 60529
Protection rating
IP67
Application
Factory automation
Further information
Approval
CE
cULus
UKCA
Special features
None
Accessories (supplied)
2 fixing nuts
Inductive sensor ifm electronic IE5338 - IEBC003BASKG/AS

The inductive sensor IE5338 - IEBC003BASKG/AS-514 from ifm operates with a supply voltage of 10-30 V DC. The output is a positive-switching NO contact. Thanks to the increased sensing range of 3 mm with flush installation the inductive sensor IE5338 - IEBC003BASKG/AS-514 provides more reliability in your applications. Thanks to the lasered type label, 4-fold LED and standardised M8 connector the inductive sensor IE5338 - IEBC003BASKG/AS-514 is often used in handling technology and in special purpose machine building.
