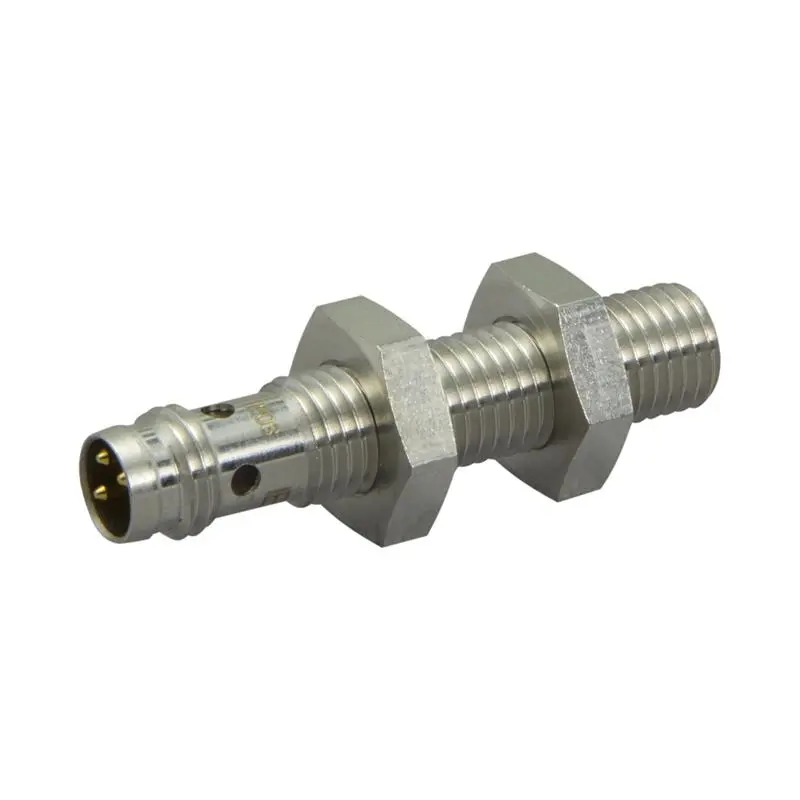

Inductive sensor ifm electronic IE5349 - IEBC003BBSKG/AS
Inductive sensor ifm electronic IE5349 - IEBC003BBSKG/AS
Inductive sensor ifm electronic IE5349 - IEBC003BBSKG/AS
Inductive sensor ifm electronic IE5349 - IEBC003BBSKG/AS

Inductive sensor ifm electronic IE5349 - IEBC003BBSKG/AS

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 103089

EAN : 4021179085359

  • Inductive sensor M8 x 1
  • Switching range [Sn] = 3 mm [f]
  • NC
  • DC PNP
  • Protection rating: IP67
  • 2-/3-wire connection
  • Switching frequency: 800 Hz
  • M8 connector

₹ 11,500

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IES
Installation
Flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
3 mm
Type
Cylindrical and threaded
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
30 V
Type of voltage
DC
Output
PNP
PNP/NPN
Output current max.
100 mA
Output function
NC
The maximum number of times the switching output can change within one second.
Switching frequency
800 Hz
Protection against overcurrent
Short-circuit protection
Yes
Protective function for reverse polarity of the connection cable.
Reverse polarity protection
Yes
Connection principle
2/3-wire
Mechanical data
Size
M8 x 1
Total length
40 mm
Connection
Connector M8
Material active surface
LCP
Housing material
Brass plated with white bronze
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
0 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
60 °C
according to DIN EN 60529
Protection rating
IP67
Application
Factory automation
Further information
Approval
CE
cULus
UKCA
Special features
None
Accessories (supplied)
2 fixing nuts
Downloads
Documentation
Datasheet (pdf 178KB)
Inductive sensor ifm electronic IE5349 - IEBC003BBSKG/AS

The inductive sensor IE5349 - IEBC003BBSKG/AS from ifm electronic operates with a supply voltage of 10-30 V DC. A Normally Closed PNP contact is available as an output. Thanks to the increased switching range of 3 mm with flush mounting, the inductive sensor IIE5349 - IEBC003-BSKG/AS offers more safety in your applications. Thanks to a laser-engraved name plate, a 4-fold switching status display and a standard M8 plug-in connection, the IE5349-IEBC003-BSKG/AS inductive sensor is often used in handling technology and in special purpose machine building.
