Best Selling Products:
ifm electronic

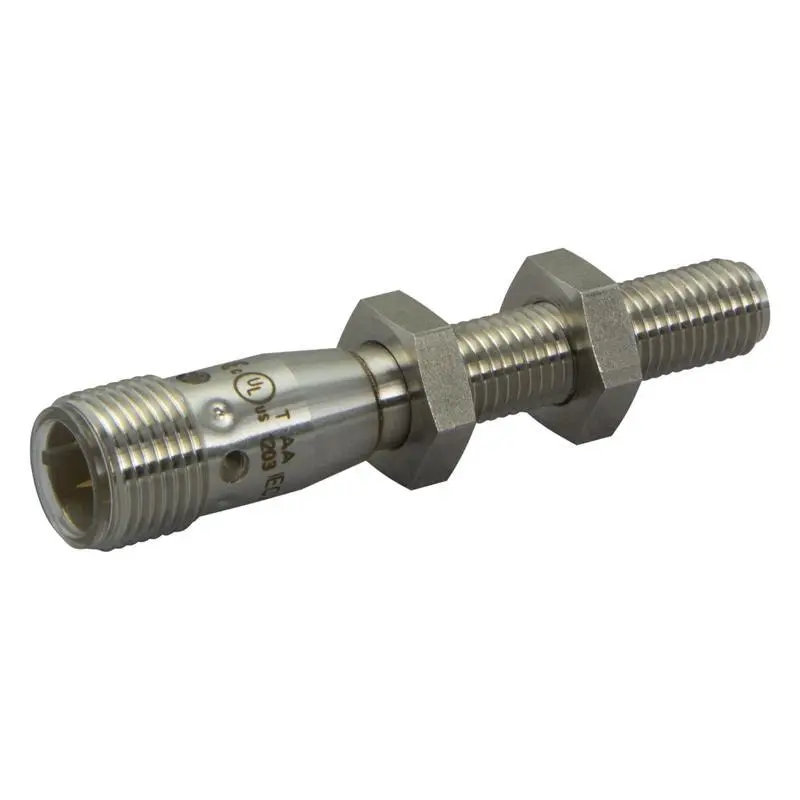

Inductive sensor ifm electronic IEC200 - IEK3002BBPKG/AM/US
Inductive sensor ifm electronic IEC200 - IEK3002BBPKG/AM/US
Inductive sensor ifm electronic IEC200 - IEK3002BBPKG/AM/US
Inductive sensor ifm electronic IEC200 - IEK3002BBPKG/AM/US

Inductive sensor ifm electronic IEC200 - IEK3002BBPKG/AM/US

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 100019

EAN : 4021179242257

  • Inductive sensor M8 x 1
  • Sn = 2 mm [f]
  • NO
  • DC PNP
  • Protection rating: IP67/IP68
  • Temperature range: -25-70 °C
  • Full-metal housing
  • M12 connector

₹ 12,700

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IEC
Installation
Flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
2 mm
Type
Cylindrical and threaded
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
36 V
Type of voltage
DC
Output
PNP
Output current max.
100 mA
Output function
1 x NO
The maximum number of times the switching output can change within one second.
Switching frequency
100 Hz
Provides protection against overcurrent conditions.
Short-circuit protection
Yes
Protective function in case of reversed connection of the supply line.
Reverse polarity protection
Yes
Connection principle
3-wire
Mechanical data
Size
M8 x 1
Total length
60 mm
Connection
Connector M12
Material of the sensing face
High-grade stainless steel
Housing material
High-grade stainless steel
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-25 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
70 °C
according to DIN EN 60529
Protection rating
IP67/IP68
Application
Manufacture of machine tools
Further information
Approval
CE
cULus
UKCA
Special features
Full-metal housing
Accessories (supplied)
2 fixing nuts
Inductive sensor ifm electronic IEC200 - IEK3002BBPKG/AM/US

The inductive sensor IEC200 - IEK3002BBPKG/AM/US from ifm operates with a supply voltage of 10-36 V DC. The output is a positive-switching NO contact. Thanks to the increased sensing range of 2 mm with flush installation the inductive sensor IEC200 - IEK3002BBPKG/AM/US provides more reliability in your applications. Thanks to the high protection rating IP67/IP68, the sensing face of resistant LCP and the special resistance to oils and coolants the inductive sensor IEC200 - IEK3002BBPKG/AM/US is often used as proximity switch in machine tools.
