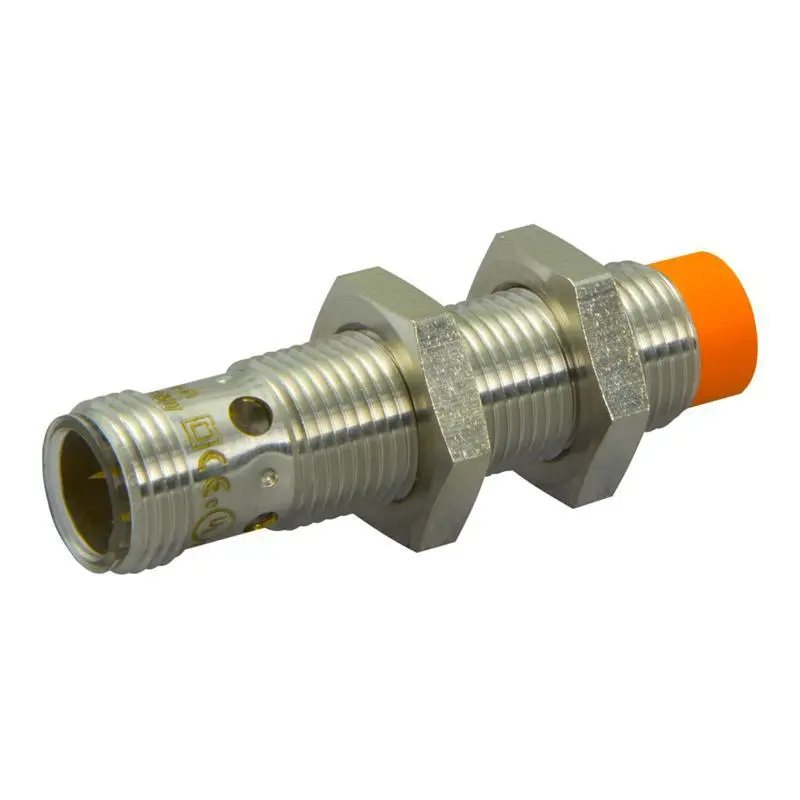

Inductive sensor ifm electronic IFS205 - IFB3007-BPKG/M/US
Inductive sensor ifm electronic IFS205 - IFB3007-BPKG/M/US
Inductive sensor ifm electronic IFS205 - IFB3007-BPKG/M/US
Inductive sensor ifm electronic IFS205 - IFB3007-BPKG/M/US

Inductive sensor ifm electronic IFS205 - IFB3007-BPKG/M/US

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 100004

EAN : 4021179086806

  • Inductive sensor M12 x 1
  • Sn = 7 mm [nf]
  • NO
  • PNP
  • Protection rating: IP67
  • Temperature range: -25-70 °C
  • Switching frequency: 700 Hz
  • M12 connector

₹ 10,000

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IFS
Installation
Non flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
7 mm
Type
Cylindrical and threaded
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
36 V
Type of voltage
DC
Output
PNP
Output current max.
100 mA
Output function
1 x NO
The maximum number of times the switching output can change within one second.
Switching frequency
700 Hz
Provides protection against overcurrent conditions.
Short-circuit protection
Yes
Protective function in case of reversed connection of the supply line.
Reverse polarity protection
Yes
Connection principle
3-wire
Mechanical data
Size
M12 x 1
Total length
50 mm
Connection
Connector M12
Material of the sensing face
PBT
Housing material
Brass plated with white bronze
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-25 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
70 °C
according to DIN EN 60529
Protection rating
IP67
Application
Factory automation
Further information
Approval
CE
cULus
UKCA
Special features
None
Accessories (supplied)
2 fixing nuts
Inductive sensor ifm electronic IFS205 - IFB3007-BPKG/M/US

The inductive sensor IFS205 - IFB3007-BPKG/M/US from ifm operates with a supply voltage of 10-36 V DC. The output is a positive-switching NO contact. Thanks to the increased sensing range of 7 mm with non-flush installation the inductive sensor IFS205 - IFB3007-BPKG/M/US provides more reliability in your applications. Thanks to the lasered type label, 4-fold LED and standardised M12 connector the inductive sensor IFS205 - IFB3007-BPKG/M/US is often used in factory automation and in machine building.
