Best Selling Products:
ifm electronic

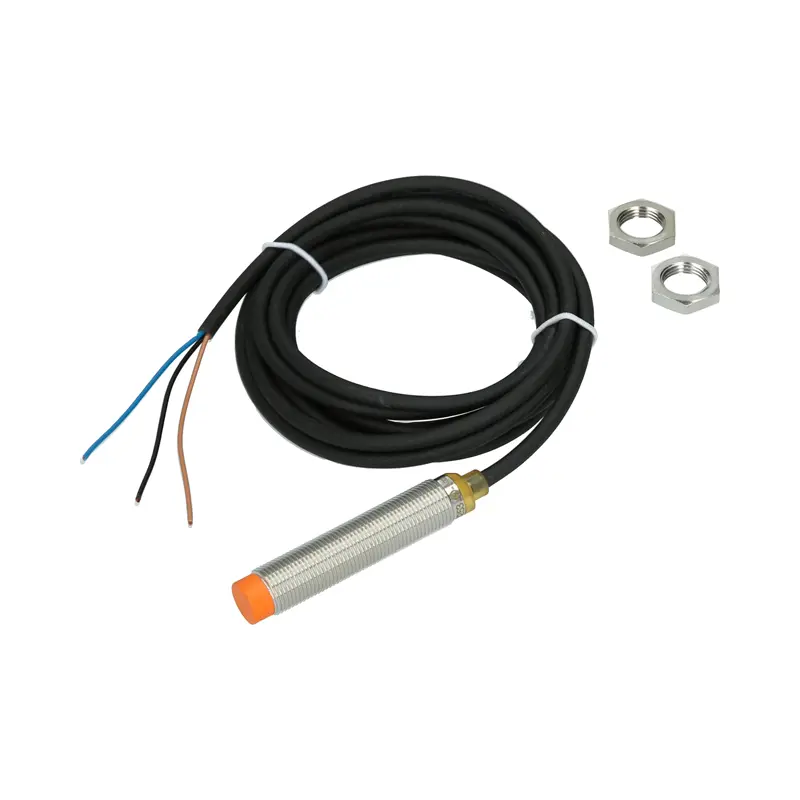

Inductive sensor ifm electronic IFS253 - IFK3007-BPKG/2M/PUR
Inductive sensor ifm electronic IFS253 - IFK3007-BPKG/2M/PUR
Inductive sensor ifm electronic IFS253 - IFK3007-BPKG/2M/PUR
Inductive sensor ifm electronic IFS253 - IFK3007-BPKG/2M/PUR

Inductive sensor ifm electronic IFS253 - IFK3007-BPKG/2M/PUR

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 105576

EAN : 4021179276337

  • Inductive sensor M12 x 1
  • Switching distance: Sn = 7 mm [b]
  • Normally open PNP
  • Construction length: 60 mm
  • Protection rating: IP65/IP66/IP67/IP68/IP69K
  • Temperature range: -40–85 °C
  • Switching frequency: 700 Hz
  • 3-wire
  • Connection: PUR cable 2 m

₹ 11,000

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IFS
Installation
Non flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
7 mm
Type
Cylindrical and threaded
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
30 V
Type of voltage
DC
Output
PNP
The current the unit can be subjected to in continuous operation.
Output current max.
100 mA
Output function
1 x NO
The maximum number of times the switching output can change within one second.
Switching frequency
700 Hz
Protection against overcurrent
Short-circuit protection
Yes
Protective function for reverse polarity of the connection cable.
Reverse polarity protection
Yes
Connection principle
3-wire
Protection class
III
Mechanical data
Size
M12 x 1
Total length
60 mm
Connection
2 m PUR cable
Material of the sensing face
PBT
Housing material
Brass plated with white bronze
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-40 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
85 °C
according to DIN EN 60529
Protection rating
IP65/IP66/IP67/IP68/IP69K
Application
Factory automation
Further information
Approval
CE
cULus
UKCA
EAC
Special features
None
Accessories (supplied)
2 fixing nuts
Downloads
Documentation
Operating instruction (pdf 502KB)
Datasheet (pdf 156KB)
Approvals/Conformities
EC declaration of conformity (pdf 341KB)
CAD data
STEP-File (ZIP 16KB)
Inductive sensor ifm electronic IFS253 - IFK3007-BPKG/2M/PUR

The inductive sensor IFS253 - IFK3007-BPKG/2M/PUR from ifm electronic operates with a supply voltage of 10–30 V DC. A PNP-switching normally open contact is available as an output. With a switching distance of 7 mm with flush mounting, the IFS253 inductive sensor offers more safety within your applications. Thanks to its lasered nameplate and 4-times switching status indicator, the IFS253 inductive sensor is popular in factory automation and mechanical engineering. The sensor is connected via the 2 m-long PUR cable.

Based on 300 reviews

4.3

overall

★★★★★
205
★★★★☆
55
★★★☆☆
23
★★☆☆☆
0
★☆☆☆☆
4
Add a review
☆ ☆ ☆ ☆ ☆
