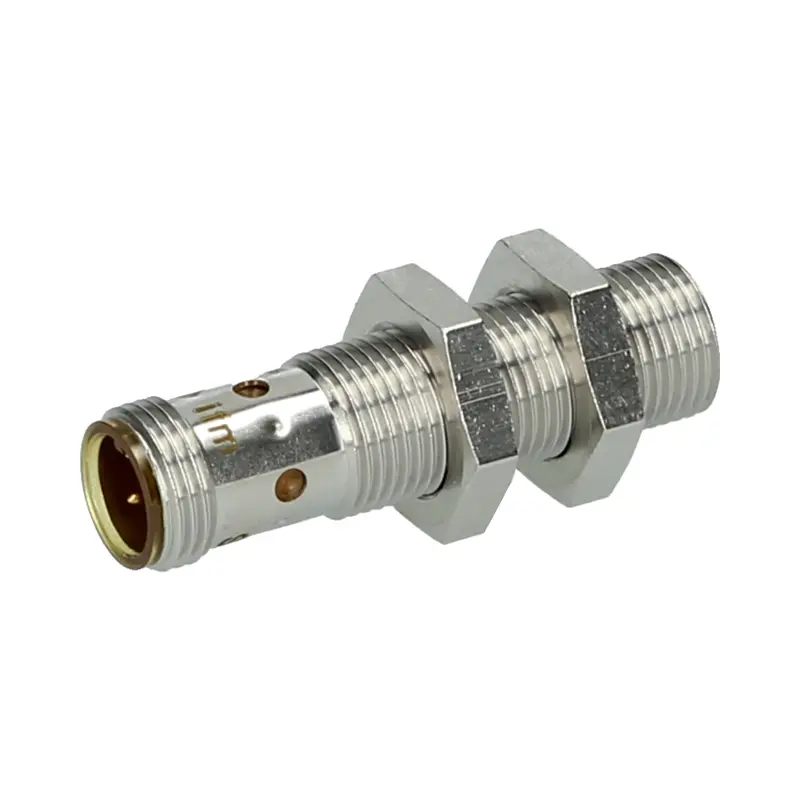

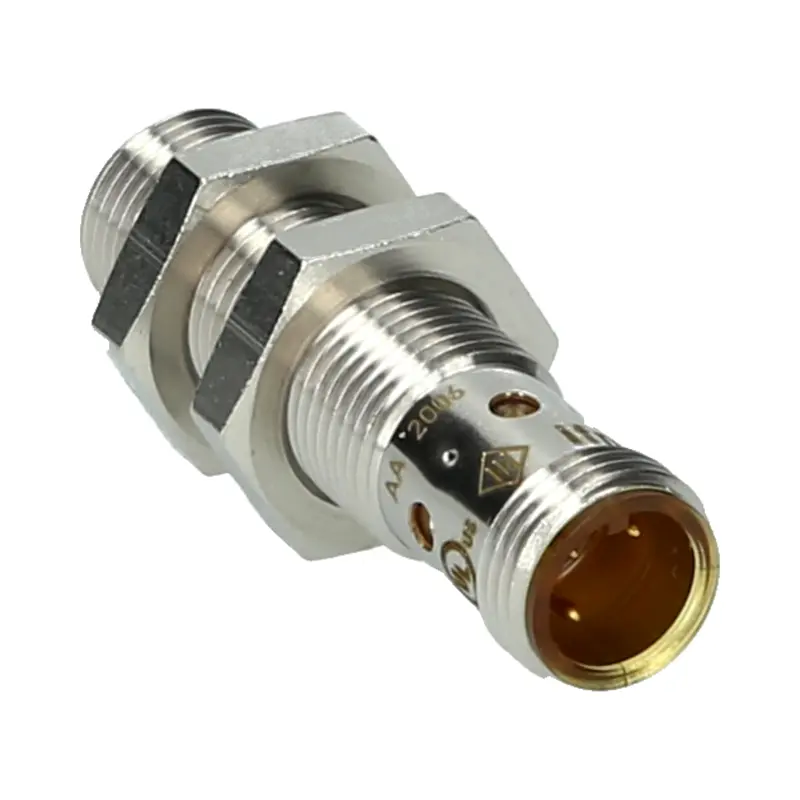

Inductive sensor ifm electronic IFS260 - IFB3004BAPKG/US-104
Inductive sensor ifm electronic IFS260 - IFB3004BAPKG/US-104
Inductive sensor ifm electronic IFS260 - IFB3004BAPKG/US-104
Inductive sensor ifm electronic IFS260 - IFB3004BAPKG/US-104
Inductive sensor ifm electronic IFS260 - IFB3004BAPKG/US-104
Inductive sensor ifm electronic IFS260 - IFB3004BAPKG/US-104
Inductive sensor ifm electronic IFS260 - IFB3004BAPKG/US-104
Inductive sensor ifm electronic IFS260 - IFB3004BAPKG/US-104

Inductive sensor ifm electronic IFS260 - IFB3004BAPKG/US-104

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 105461

EAN : 4021179276405

  • Inductive sensor M12 x 1
  • Sensing range: Sn = 4 mm [f]
  • NC PNP
  • Total length: 45 mm
  • Protection rating: IP65/IP66/IP67/IP68/IP69K
  • Temperature range: -40-85 °C
  • Switching frequency: 700 Hz
  • 3-wire
  • M12 connector

₹ 10,700

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IFS
Installation
Flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
4 mm
Type
Cylindrical and threaded
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
30 V
Type of voltage
DC
Output
PNP
Output current max.
100 mA
Output function
NC
The maximum number of times the switching output can change within one second.
Switching frequency
700 Hz
Provides protection against overcurrent conditions.
Short-circuit protection
Yes
Protective function in case of reversed connection of the supply line.
Reverse polarity protection
Yes
Connection principle
3-wire
Protection class
III
Mechanical data
Size
M12 x 1
Total length
45 mm
Connection
Connector M12
Material of the sensing face
PBT
Housing material
Brass plated with white bronze
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-40 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
85 °C
according to DIN EN 60529
Protection rating
IP65/IP66/IP67/IP68/IP69K
Application
Factory automation
Further information
Approval
CE
EAC
cULus
UKCA
Special features
None
Accessories (supplied)

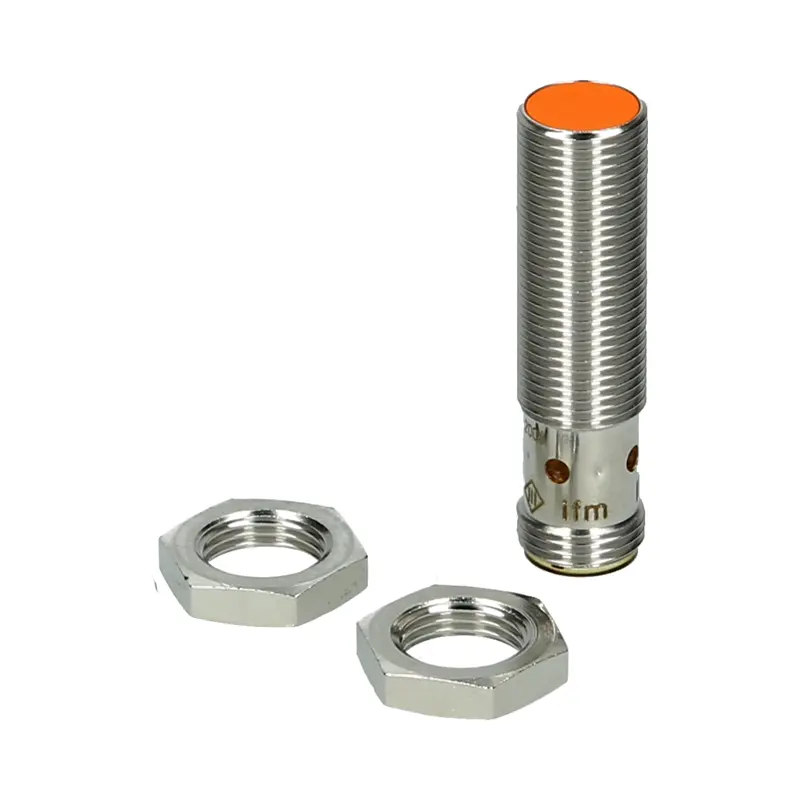

2 fixing nuts
Downloads
Documentation
Operating instruction (pdf 502KB)
Datasheet (pdf 176KB)
Approvals/Conformities
EC declaration of conformity (pdf 341KB)
CAD data
STEP-File (ZIP 21KB)
Inductive sensor ifm electronic IFS260 - IFB3004BAPKG/US-104

The IFS260 - IFB3004BAPKG/US-104 inductive sensor from ifm electronic operates with a supply voltage of 10-30 V DC. A NC PNP contact is available as an output With a sensing range of 4 mm when installed flush, the inductive sensor IFS260 offers more security within your applications. Thanks to the lasered type label, 4-fold LED and standardised M12 connector, the inductive sensor IFS260 is often used in factory automation and in machine building.
