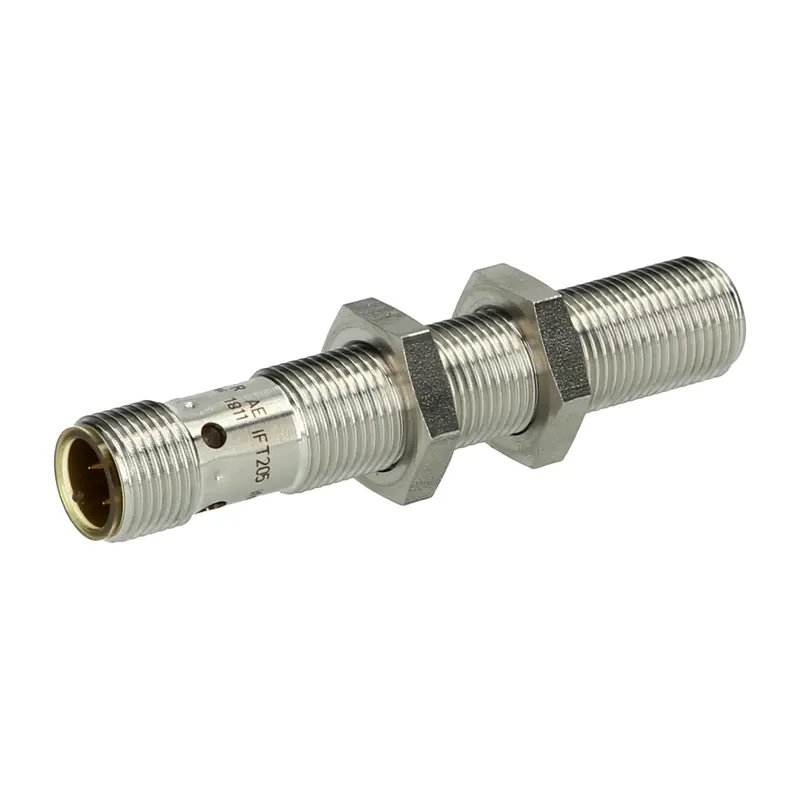

Inductive sensor ifm electronic IFT205 - IFKC004BASKG/M/V4A/US-104-DRS
Inductive sensor ifm electronic IFT205 - IFKC004BASKG/M/V4A/US-104-DRS
Inductive sensor ifm electronic IFT205 - IFKC004BASKG/M/V4A/US-104-DRS
Inductive sensor ifm electronic IFT205 - IFKC004BASKG/M/V4A/US-104-DRS
Inductive sensor ifm electronic IFT205 - IFKC004BASKG/M/V4A/US-104-DRS
Inductive sensor ifm electronic IFT205 - IFKC004BASKG/M/V4A/US-104-DRS

Inductive sensor ifm electronic IFT205 - IFKC004BASKG/M/V4A/US-104-DRS

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 104407

EAN : 4021179087032

  • Inductive sensor M12 x 1
  • Sensing range = 4 mm [f]
  • NO
  • DC PNP/NPN
  • Total length: 70 mm
  • 2/3-wire
  • Protection rating: IP68/IP69K
  • Temperature range: 0-100 °C
  • Stainless steel housing
  • M12 connector

₹ 14,000

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IFT
Installation
Flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
4 mm
Type
Cylindrical and threaded
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
36 V
Type of voltage
DC
Output
PNP/NPN
The current the unit can be subjected to in continuous operation.
Output current max.
100 mA
Output function
1 x NO
The maximum number of times the switching output can change within one second.
Switching frequency
500 Hz
Protection against overcurrent
Short-circuit protection
Yes
Protective function for reverse polarity of the connection cable.
Reverse polarity protection
Yes
Connection principle
2/3-wire
Mechanical data
Size
M12 x 1
Total length
70 mm
Connection
Connector M12
Material of the sensing face
High-grade stainless steel
Housing material
High-grade stainless steel
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
0 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
100 °C
according to DIN EN 60529
Protection rating
IP68/IP69K
Application
Food industry
Further information
Approval
CE
cULus
UKCA
Special features
None
Accessories (supplied)

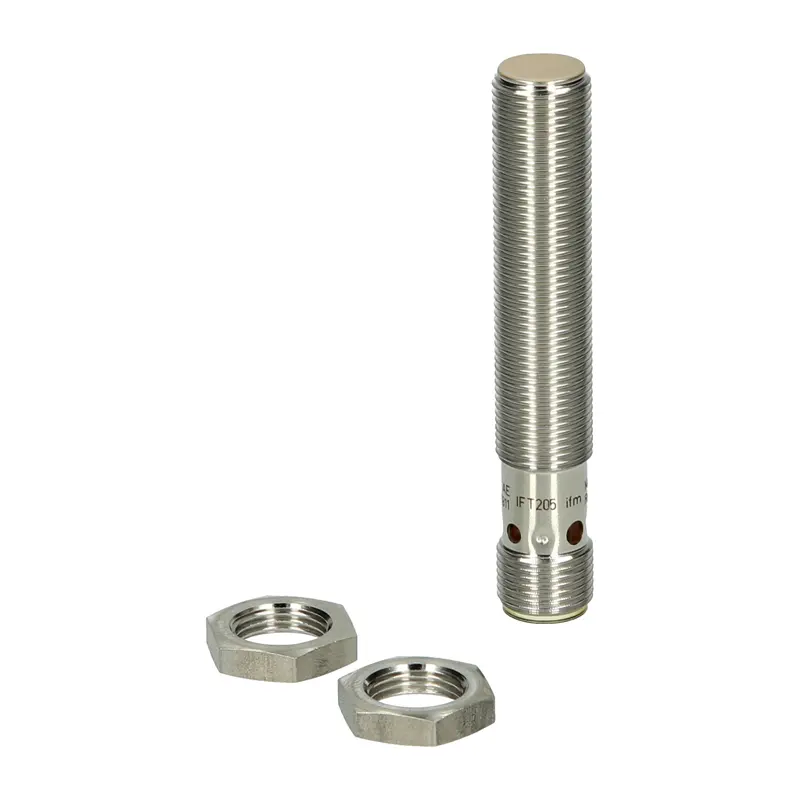

2 fixing nuts
Downloads
Documentation
Datasheet (pdf 179KB)
Mounting manual (pdf 502KB)
Approvals/Conformities
EC declaration of conformity (pdf 341KB)
CAD data
STEP-File (ZIP 31KB)
Inductive sensor ifm electronic IFT205 - IFKC004BASKG/M/V4A/US-104-DRS

The IFT205 - IFKC004BASKG/M/V4A/US-104-DRS inductive sensor from ifm electronic operates with a supply voltage of 10-36 V DC. Thanks to the high protection rating IP68/IP69K, the temperature range of 0-100 °C and the lasered nameplate, the IFT205 - IFKC004BASKG/M/V4A/US-104-DRS inductive sensor with a sensing range of 4 mm with flush installation is the optimal proximity switch for use in the food industry. The sensor is temperature shock resistant and the resistance to high pressure cleaning and aggressive cleaning agents has been ECOLAB test certified.
