ifm electronic

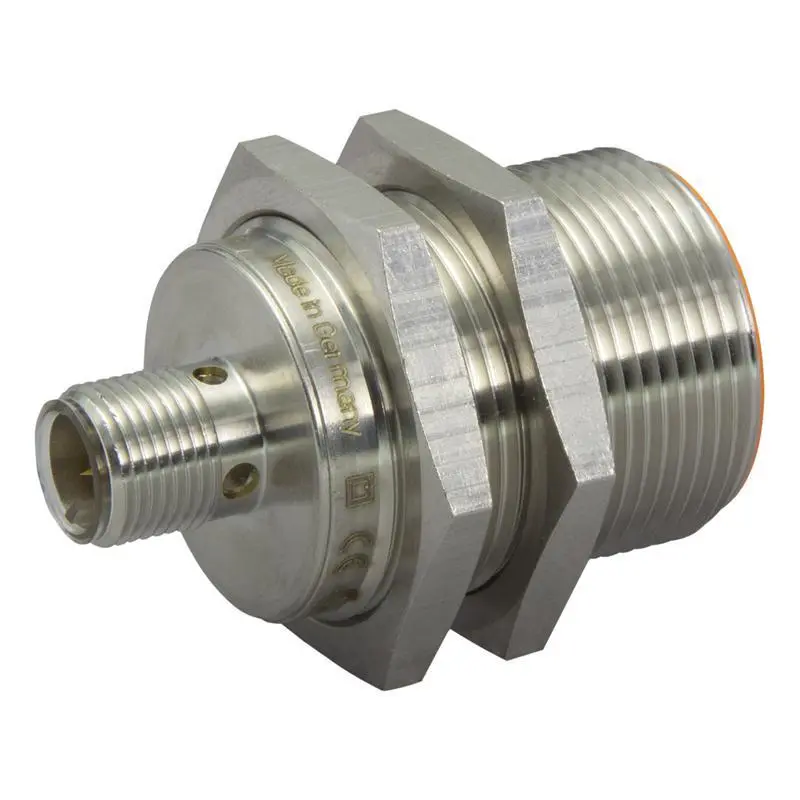

Inductive sensor ifm electronic IIS204 - IIB3015BBPKG/M/US
Inductive sensor ifm electronic IIS204 - IIB3015BBPKG/M/US
Inductive sensor ifm electronic IIS204 - IIB3015BBPKG/M/US
Inductive sensor ifm electronic IIS204 - IIB3015BBPKG/M/US

Inductive sensor ifm electronic IIS204 - IIB3015BBPKG/M/US

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 100011

EAN : 4021179117968

  • Inductive sensor M30 x 1.5
  • Sn = 15 mm [f]
  • NO
  • DC PNP
  • Protection rating: IP67
  • Temperature range: -25-70 °C
  • Switching frequency: 100 Hz
  • M12 connector

₹ 13,500

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IIS
Installation
Flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
15 mm
Type
Cylindrical and threaded
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
36 V
Type of voltage
DC
Output
PNP
The current the unit can be subjected to in continuous operation.
Output current max.
100 mA
Output function
1 x NO
The maximum number of times the switching output can change within one second.
Switching frequency
100 Hz
Protection against overcurrent
Short-circuit protection
Yes
Protective function for reverse polarity of the connection cable.
Reverse polarity protection
Yes
Connection principle
3-wire
Mechanical data
Size
M30 x 1.5
Total length
50 mm
Connection
Connector M12
Material active surface
PBT
Housing material
Brass plated with white bronze
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-25 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
70 °C
according to DIN EN 60529
Protection rating
IP67
Application
Factory automation
Further information
Approval
CE
cULus
UKCA
Special features
None
Accessories (supplied)
2 fixing nuts
Downloads
Documentation
Datasheet (pdf 62KB)
Approvals/Conformities
cULus, UL Approval (pdf 528KB)
EC declaration of conformity (pdf 169KB)
CAD data
STEP-File (zip 27KB)
Inductive sensor ifm electronic IIS204 - IIB3015BBPKG/M/US

The inductive sensor IIS204 - IIB3015BBPKG/M/US from ifm operates with a supply voltage of 10-36 V DC. The output is a positive-switching NO contact. Thanks to the increased sensing range of 15 mm with flush installation the inductive sensor IIS204 - IIB3015BBPKG/M/US provides more reliability in your applications. Thanks to the lasered type label, 4-fold LED and standardised M12 connector the inductive sensor IIS204 - IIB3015BBPKG/M/US is often used in factory automation and in machine building.
