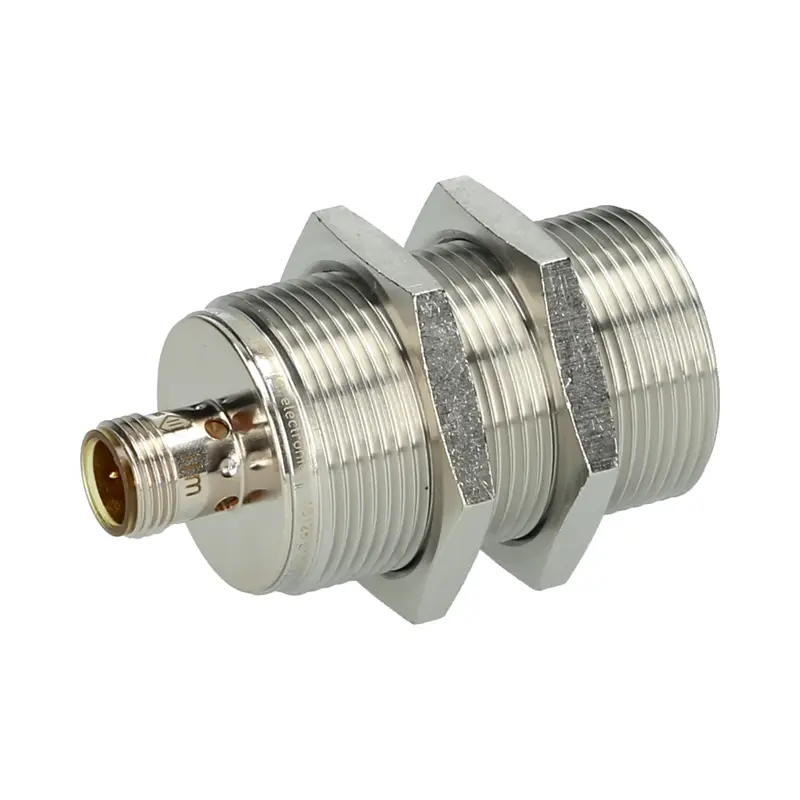

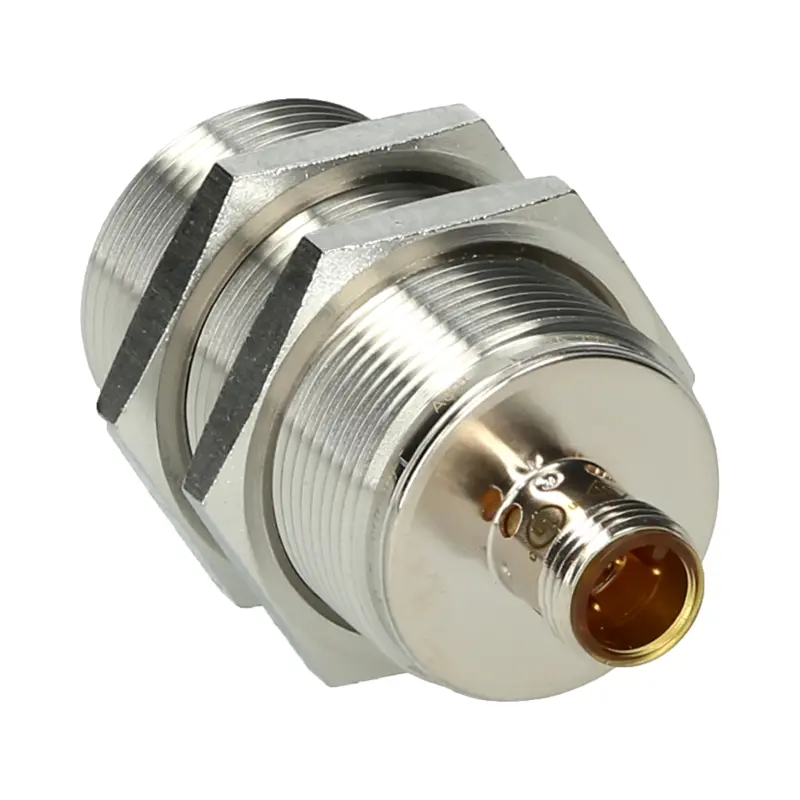

Inductive sensor ifm electronic IIS234 - IIK3015BAPKG/US-104
Inductive sensor ifm electronic IIS234 - IIK3015BAPKG/US-104
Inductive sensor ifm electronic IIS234 - IIK3015BAPKG/US-104
Inductive sensor ifm electronic IIS234 - IIK3015BAPKG/US-104
Inductive sensor ifm electronic IIS234 - IIK3015BAPKG/US-104
Inductive sensor ifm electronic IIS234 - IIK3015BAPKG/US-104
Inductive sensor ifm electronic IIS234 - IIK3015BAPKG/US-104
Inductive sensor ifm electronic IIS234 - IIK3015BAPKG/US-104

Inductive sensor ifm electronic IIS234 - IIK3015BAPKG/US-104

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 105571

EAN : 4021179273619

  • Inductive sensor M30 x 1.5
  • Switching distance: Sn = 15 mm [b]
  • Normally closed PNP
  • Construction length: 60 mm
  • Protection rating: IP65/IP66/IP67/IP68/IP69K
  • Temperature range: -40–85 °C
  • Switching frequency: 100 Hz
  • 3-wire
  • M12 plug connection

₹ 13,500

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IIS
Installation
Flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
15 mm
Type
Cylindrical and threaded
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
30 V
Type of voltage
DC
Output
PNP
The current the unit can be subjected to in continuous operation.
Output current max.
100 mA
Output function
NC
The maximum number of times the switching output can change within one second.
Switching frequency
100 Hz
Protection against overcurrent
Short-circuit protection
Yes
Protective function for reverse polarity of the connection cable.
Reverse polarity protection
Yes
Connection principle
3-wire
Protection class
III
Mechanical data
Size
M30 x 1.5
Total length
60 mm
Connection
Connector M12
Material of the sensing face
PBT
Housing material
Brass plated with white bronze
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-40 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
85 °C
according to DIN EN 60529
Protection rating
IP65/IP66/IP67/IP68/IP69K
Application
Factory automation
Further information
Approval
CE
cULus
UKCA
EAC
Special features
None

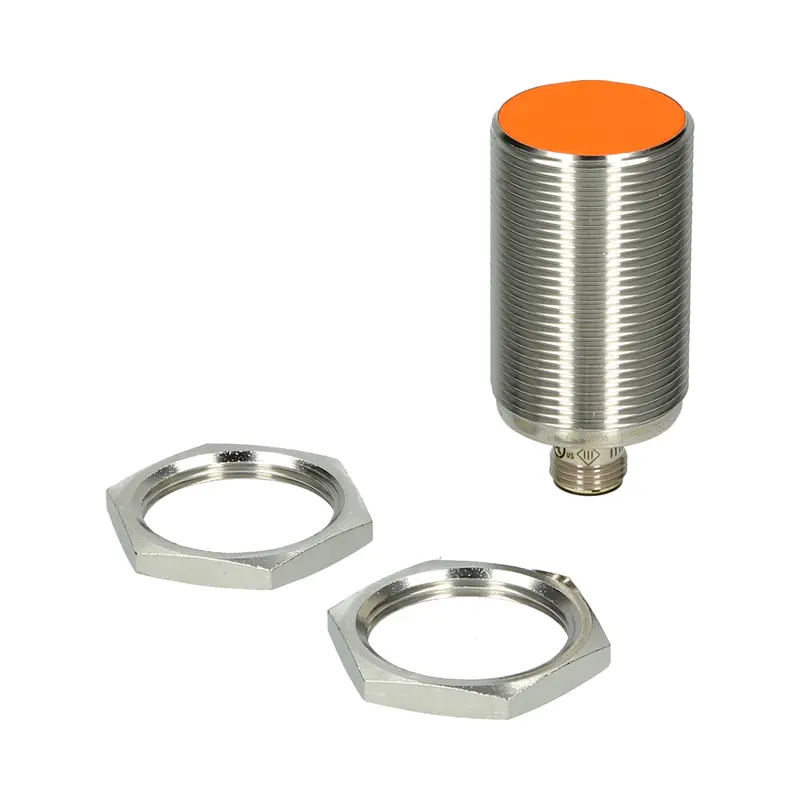

Accessories (supplied)
2 fixing nuts
Downloads
Documentation
Operating instruction (pdf 502KB)
Datasheet (pdf 191KB)
Approvals/Conformities
EC declaration of conformity (pdf 341KB)
CAD data
STEP-File (ZIP 21KB)
Inductive sensor ifm electronic IIS234 - IIK3015BAPKG/US-104

The inductive sensor IIS234 - IIK3015BAPKG/US-104 from ifm electronic operates with a supply voltage of 10–30 V DC. A PNP-switching normally closed contact is available as an output. With a switching distance of 15 mm with flush mounting, the IIS234 inductive sensor offers more safety within your applications. Thanks to its lasered nameplate, 4-times switching status indicator and standardised M12 plug connection, the IIS234 inductive sensor is popular in factory automation and mechanical engineering.
