Best Selling Products:
ifm electronic

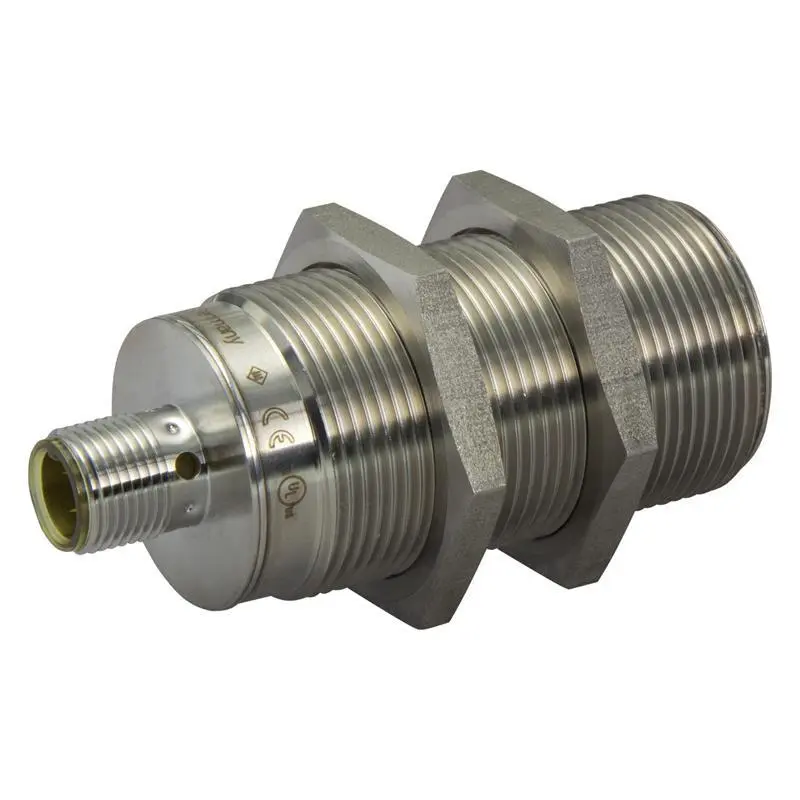

Inductive sensor ifm electronic IIT228 - IIK3010-BPKG/AM/US-104-DPS
Inductive sensor ifm electronic IIT228 - IIK3010-BPKG/AM/US-104-DPS
Inductive sensor ifm electronic IIT228 - IIK3010-BPKG/AM/US-104-DPS
Inductive sensor ifm electronic IIT228 - IIK3010-BPKG/AM/US-104-DPS

Inductive sensor ifm electronic IIT228 - IIK3010-BPKG/AM/US-104-DPS

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 100041

EAN : 4021179235266

  • Inductive sensor M30 x 1.5
  • Sn = 10 mm [f]
  • NO
  • DC PNP
  • Protection rating: IP68/IP69K
  • Temperature range: 0-100 °C
  • ECOLAB certified

₹ 17,000

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IIT
Installation
Flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
10 mm
Type
Cylindrical and threaded
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
36 V
Type of voltage
DC
Output
PNP
The current the unit can be subjected to in continuous operation.
Output current max.
100 mA
Output function
1 x NO
The maximum number of times the switching output can change within one second.
Switching frequency
50 Hz
Protection against overcurrent
Short-circuit protection
Yes
Protective function for reverse polarity of the connection cable.
Reverse polarity protection
Yes
Connection principle
3-wire
Mechanical data
Size
M30 x 1.5
Total length
70 mm
Connection
Connector M12
Material of the sensing face
High-grade stainless steel
Housing material
High-grade stainless steel
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
0 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
100 °C
according to DIN EN 60529
Protection rating
IP68/IP69K
Application
Food industry
Further information
Approval
CE
cULus
UKCA
Special features
Full-metal housing
Accessories (supplied)
2 fixing nuts
Downloads
Documentation
Datasheet (pdf 62KB)
Approvals/Conformities
cULus, UL Approval (pdf 528KB)
EC declaration of conformity (pdf 169KB)
ECOLAB Certificate (pdf 342KB)
CAD data
STEP-File (zip 37KB)
Inductive sensor ifm electronic IIT228 - IIK3010-BPKG/AM/US-104-DPS

The full-metal inductive sensor IIT228 - IIK3010-BPKG/AM/US-104-DPS from ifm operates with a supply voltage of 10-36 V DC. Thanks to the high protection rating IP68/IP69K, the temperature range of 0-100 °C and the lasered type label the inductive full-metal sensor IIT228 - IIK3010-BPKG/AM/US-104-DPS with a sensing range of 10 mm with flush installation is the optimum proximity switch for use in the food industry. The resistance to high-pressure cleaning and aggressive cleaning agents was certified by an ECOLAB test.
