Best Selling Products:
ifm electronic

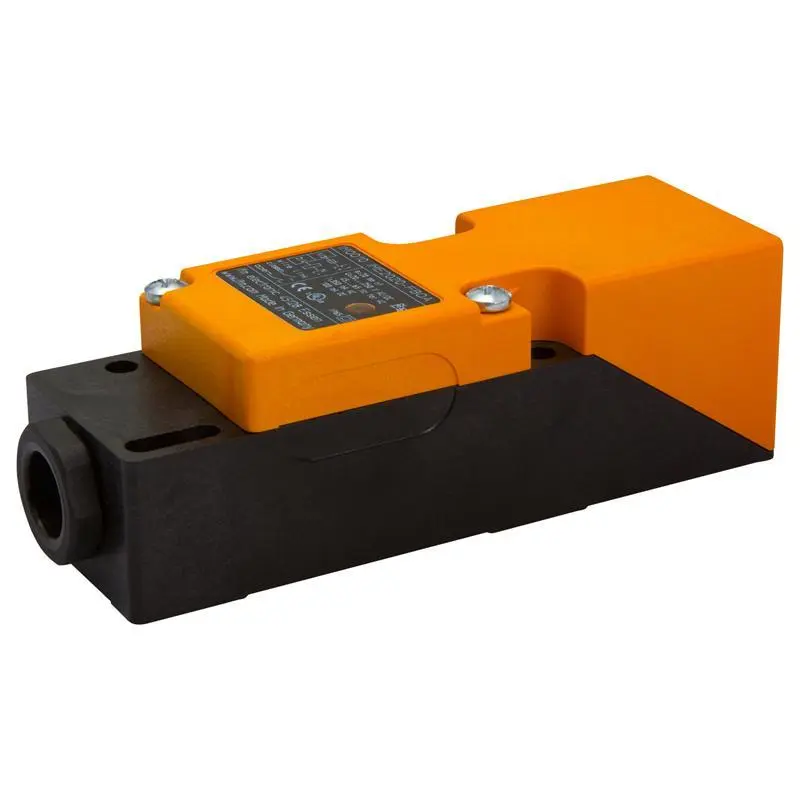

Inductive sensor ifm electronic IM0010 - IME2020-FBOA
Inductive sensor ifm electronic IM0010 - IME2020-FBOA
Inductive sensor ifm electronic IM0010 - IME2020-FBOA
Inductive sensor ifm electronic IM0010 - IME2020-FBOA

Inductive sensor ifm electronic IM0010 - IME2020-FBOA

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 100033

EAN : 4021179129602

  • Inductive sensor rectangular
  • Sn = 20 mm [nf]
  • NC/NO programmable
  • 20-250 V AC/DC
  • Protection rating: IP65
  • Connection terminals
  • 5 positions of the active zone possible

₹ 21,000

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IM
Installation
Non flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
20 mm
Type
Rectangular
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
20 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
250 V
Type of voltage
AC/DC
Output
PNP
The current the unit can be subjected to in continuous operation.
Output current max.
350 AC (...50 °C)/250 AC (...80 °C)/100 DC mA
Output function
NO/NC programmable
The maximum number of times the switching output can change within one second.
Switching frequency
20 Hz
Connection principle
2-wire
Mechanical data
Size
40 x 40 mm
Total length
121 mm
Connection
Terminal block
Material active surface
PPE
Housing material
PPE
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-25 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
80 °C
according to DIN EN 60529
Protection rating
IP65
Application
Factory automation
Further information
Approval
CE
cULus
UKCA
CCC
Special features
5 positions of the sensing face possible
Accessories (supplied)
No accessories
Downloads
Documentation
Mounting manual (pdf 149KB)
Datasheet (pdf 78KB)
Approvals/Conformities
CCC Approval (pdf 267KB)
cULus, UL Approval (pdf 528KB)
EC declaration of conformity (pdf 364KB)
CAD data
STEP-File (zip 22KB)
Inductive sensor ifm electronic IM0010 - IME2020-FBOA

The rectangular inductive sensor IA0010 - IAE2020-FBOA from ifm operates as dual voltage design with 20-250 V AC/DC. Thanks to its design the inductive sensor IM0010 - IME2020-FBOA is compatible with many mechanical limit switches and can therefore easily be replaced in case of maintenance. With its 20 mm sensing range with non-flush installation the inductive sensor IM0010 - IME2020-FBOA is the optimum proximity switch for many applications in conveying. The NC or NO output function can be selected via a wire bridge on the unit.
