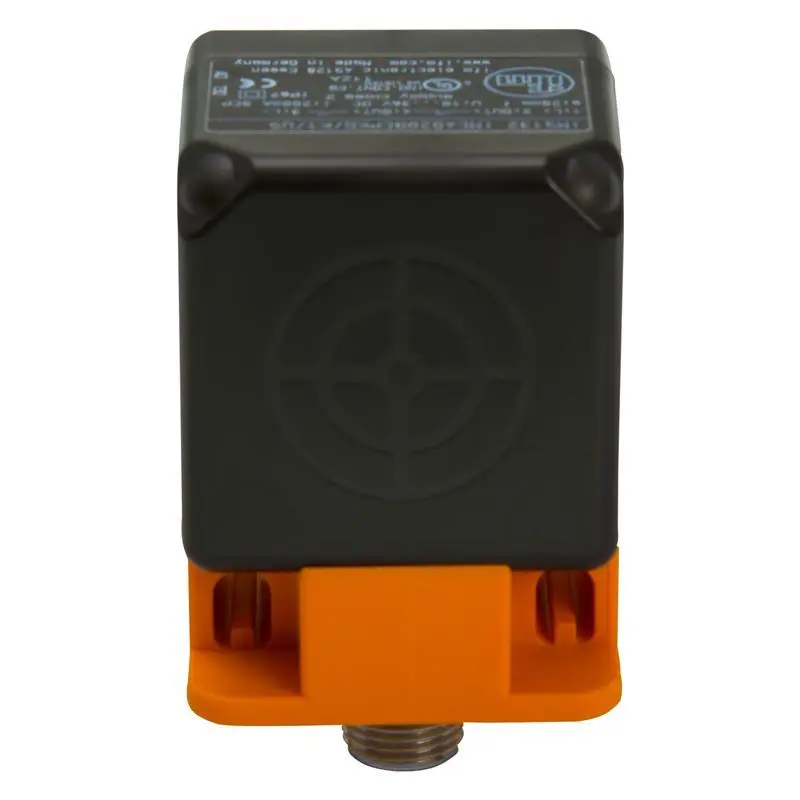

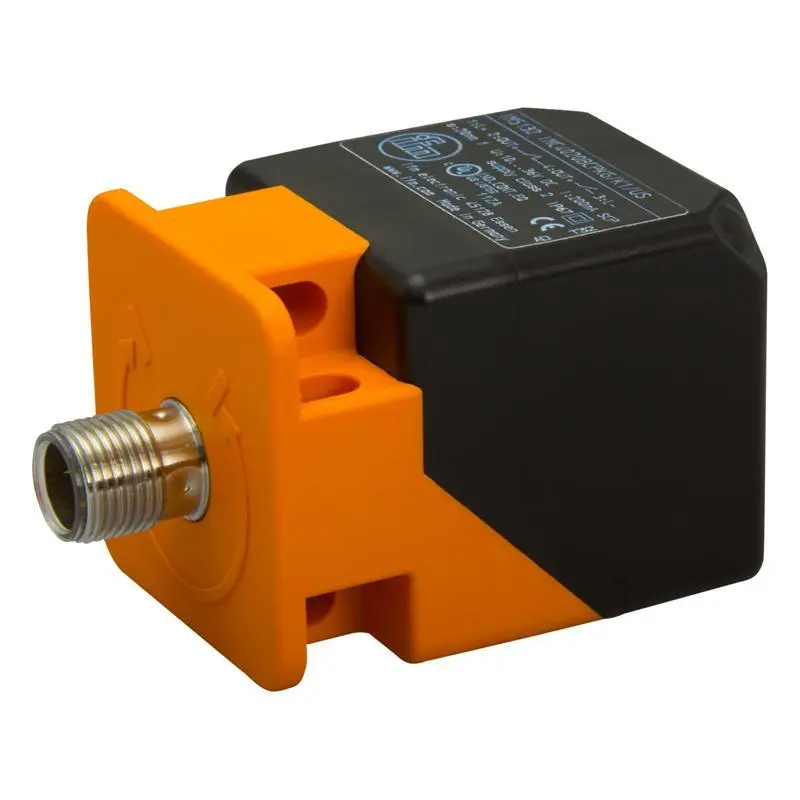

Inductive sensor ifm electronic IM5132 - IMC4020BCPKG/K1/US
Inductive sensor ifm electronic IM5132 - IMC4020BCPKG/K1/US
Inductive sensor ifm electronic IM5132 - IMC4020BCPKG/K1/US
Inductive sensor ifm electronic IM5132 - IMC4020BCPKG/K1/US
Inductive sensor ifm electronic IM5132 - IMC4020BCPKG/K1/US
Inductive sensor ifm electronic IM5132 - IMC4020BCPKG/K1/US

Inductive sensor ifm electronic IM5132 - IMC4020BCPKG/K1/US

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 100029

EAN : 4021179131438

  • Inductive sensor rectangular
  • Sn = 20 mm [f]
  • Complementary
  • DC PNP
  • Correction factor 1 on all metals
  • Protection rating: IP67
  • 5 positions of the active zone possible
  • M12 connector

₹ 11,000

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IM
Installation
Flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
20 mm
Correction factor K=1
Yes
Type
Rectangular
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
36 V
Type of voltage
DC
Output
PNP
Output current max.
200 mA
Output function
Complementary (NO/NC)
The maximum number of times the switching output can change within one second.
Switching frequency
200 Hz
Protection against overcurrent
Short-circuit protection
Yes
Protective function for reverse polarity of the connection cable.
Reverse polarity protection
Yes
Connection principle
3-wire
Mechanical data
Size
40 x 40 mm
Total length
66 mm
Connection
Connector M12
Material active surface
PA
Housing material
PA
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-25 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
70 °C
according to DIN EN 60529
Protection rating
IP67
Application
Factory automation
Further information
Approval
CE
cULus
UKCA
Special features
None
Accessories (supplied)
No accessories
Downloads
Documentation
Mounting manual (pdf 160KB)
Datasheet (pdf 71KB)
Approvals/Conformities
cULus, UL Approval (pdf 528KB)
EC declaration of conformity (pdf 169KB)
CAD data
STEP-File (zip 60KB)
Inductive sensor ifm electronic IM5132 - IMC4020BCPKG/K1/US

The rectangular inductive sensor IM5132 - IMC4020BCPKG/K1/US from ifm operates with a supply voltage of 10-36 V DC. Thanks to its design the inductive sensor IM5132 - IMC4020BCPKG/K1/US is compatible with many mechanical limit switches and can therefore easily be replaced in case of maintenance. With its 20 mm sensing range with flush installation and the correction factor 1on all metals the inductive sensor IM5132 - IMC4020BCPKG/K1/US is the optimum proximity switch for many applications in conveying.
