ifm electronic

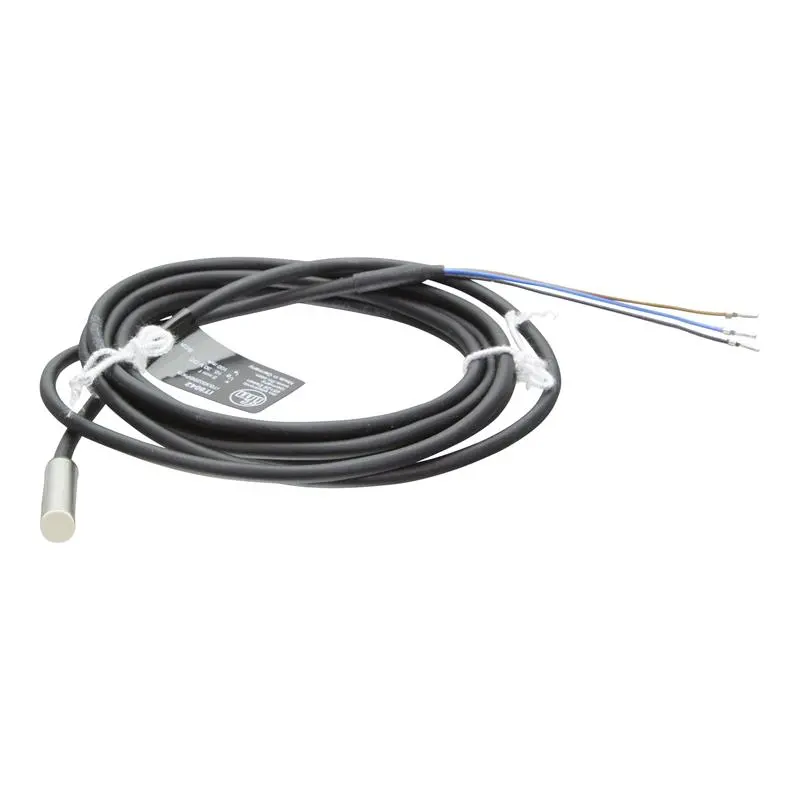

Inductive sensor ifm electronic IT5042 - ITB3002BBPKG/V4A/2M
Inductive sensor ifm electronic IT5042 - ITB3002BBPKG/V4A/2M
Inductive sensor ifm electronic IT5042 - ITB3002BBPKG/V4A/2M
Inductive sensor ifm electronic IT5042 - ITB3002BBPKG/V4A/2M
Inductive sensor ifm electronic IT5042 - ITB3002BBPKG/V4A/2M
Inductive sensor ifm electronic IT5042 - ITB3002BBPKG/V4A/2M

Inductive sensor ifm electronic IT5042 - ITB3002BBPKG/V4A/2M

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 102897

EAN : 4021179139083

  • Inductive sensor
  • Switching range Sn = 2 mm [f]
  • NO
  • DC PNP
  • Protection rating: IP67
  • Switching frequency: 1,500 Hz
  • 2 m PUR cable
  • Mounting bracket included

₹ 14,200

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IT
Installation
Flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
2 mm
Type
Cylindrical and smooth
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
30 V
Type of voltage
DC
Output
PNP
The current the unit can be subjected to in continuous operation.
Output current max.
100 mA
Output function
1 x NO
The maximum number of times the switching output can change within one second.
Switching frequency
1500 Hz
Protection against overcurrent
Short-circuit protection
Yes
Protective function for reverse polarity of the connection cable.
Reverse polarity protection
Yes
Connection principle
3-wire
Mechanical data
Size
Ø 6.5 mm
Total length
27 mm
Connection
2 m PUR cable
Material of the sensing face
LCP
Housing material
High-grade stainless steel
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-20 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
70 °C
according to DIN EN 60529
Protection rating
IP67
Application
Factory automation
Further information
Approval
CE
cULus
UKCA
Special features
None
Accessories (supplied)

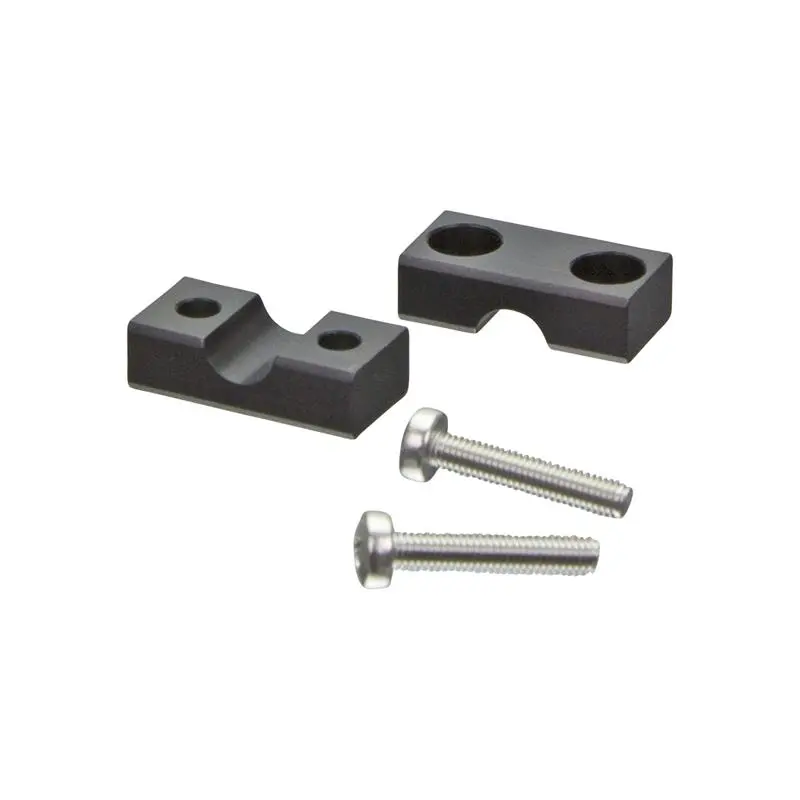

Mounting clamp
Downloads
Documentation
Operating instruction (pdf 502KB)
Datasheet (pdf 55KB)
Approvals/Conformities
cULus, UL Approval (pdf 528KB)
EC declaration of conformity (pdf 169KB)
CAD data
STEP-File (zip 3KB)
Inductive sensor ifm electronic IT5042 - ITB3002BBPKG/V4A/2M

The inductive sensor IT5042- ITB3002BBPKG/V4A/2M from ifm operates with a supply voltage of 10-30 V DC. The output is a positive-switching NO contact. Thanks to the increased sensing range of 2 mm with flush installation the inductive sensor IT5042- ITB3002BBPKG/V4A/2M provides more reliability in your applications. Thanks to the switching status display, 2 m PUR connection cable and its compact dimensions, the inductive sensor IT5042- ITB3002BBPKG/V4A/2M is often used in handling technology and special machinery.
