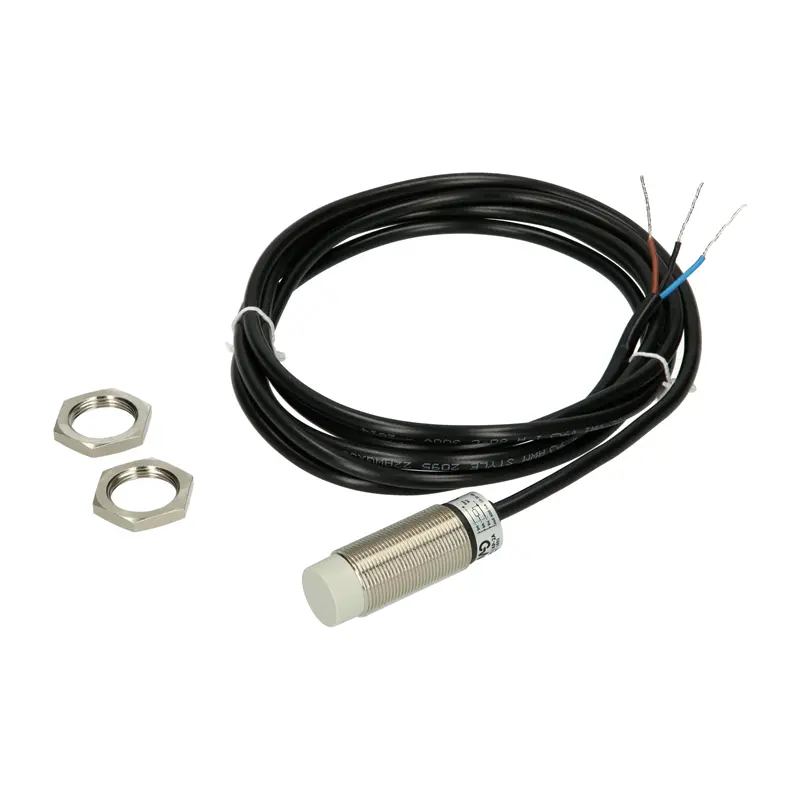

Inductive sensor MD Micro Detectors AK1/AP-2A
Inductive sensor MD Micro Detectors AK1/AP-2A
Inductive sensor MD Micro Detectors AK1/AP-2A
Inductive sensor MD Micro Detectors AK1/AP-2A

Inductive sensor MD Micro Detectors AK1/AP-2A

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 104354

EAN : 4250738114074

  • Inductive sensor M18 x 1
  • Switching distance Sn: 8 mm [nb]
  • Operating voltage: 10...30 V DC
  • Output function: Normally open PNP
  • Protection class: IP67
  • Switching frequency: 600 Hz
  • Connection: 2 m PVC cable

₹ 5,000

in stock

Dispatch next working day

Price On Request Price On Request
General data
Execution
Inductive sensor
Series
AK1/AP
Installation
Not flush
The switching distance refers to the distance at which an object approaching the active surface (depending on the operating principle) causes a signal change.
Switching distance
8 mm
Correction factor K=1
No
Design
Cylindrical with thread
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
30 V
Voltage type
DC
Exit
PNP
Output function
1 x normally open contact (NO)
The current with which the device can be continuously loaded during operation.
Output current max.
400 mA
The maximum number of signal changes at the switching output within one second.
Switching frequency
600 Hz
Protection against overcurrent.
Short-circuit protection
Yes
Protective function in case of reversed connection of the supply line.
Reverse polarity protection
Yes
Connection principle
3-wire
Mechanical data
Size
M18 x 1
Total length
50 mm
Connection
2 m PVC cable
Material of the sensing face
PBT
Housing material
Brass, nickel-plated
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-25 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
70 °C
according to DIN EN 60529
Protection rating
IP67
Application
Factory automation
Further information
Approval
cRUus
CE
Special features
No
Accessories included
2 fastening nuts
Inductive sensor MD Micro Detectors AK1/AP-2A

The AK1/AP-2A inductive sensor from MD Micro Detectors, with an M18 x 1 size, operates with a supply voltage of 10…30 V DC. A PNP normally open contact with a switching frequency of 600 Hz is available as the output. With a switching distance of 8 mm in non-flush installation, the AK1/AP-2A inductive sensor can be used in a temperature range of -25…70 °C. Thanks to its IP67 protection rating and 2 m PVC connection cable, the AK1/AP-2A inductive sensor can be used in all applications without harsh environmental requirements.
