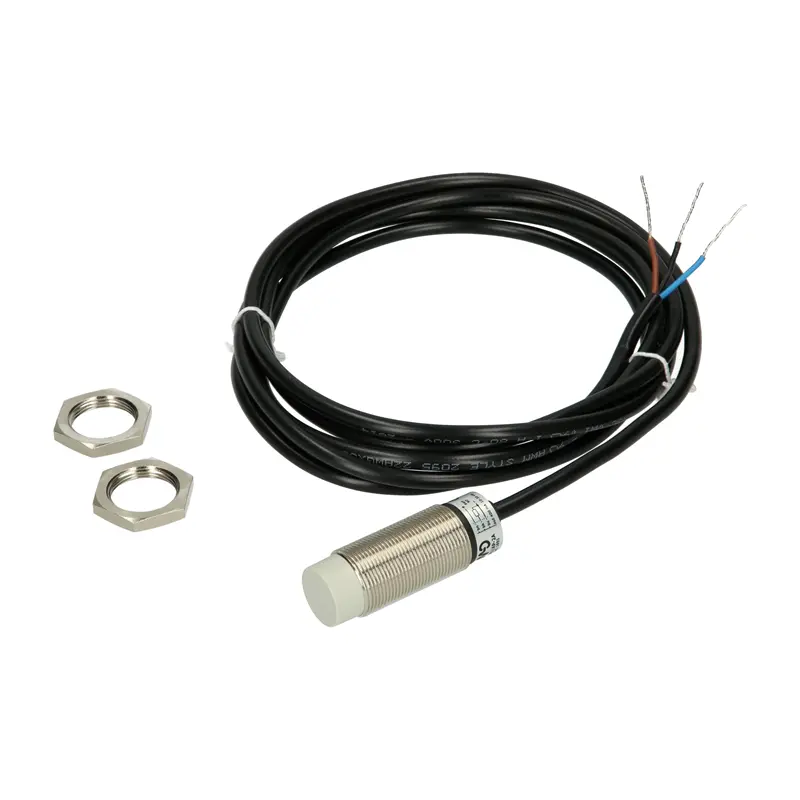

Inductive sensor M.D. Micro Detectors AK1/AP-4A
Inductive sensor M.D. Micro Detectors AK1/AP-4A
Inductive sensor M.D. Micro Detectors AK1/AP-4A
Inductive sensor M.D. Micro Detectors AK1/AP-4A

Inductive sensor M.D. Micro Detectors AK1/AP-4A

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 104358

EAN : 4250738114111

  • Inductive sensor M18 x 1
  • Sensing range: 12 mm [nf]
  • Operating voltage: 10-30 V DC
  • Output function: NO PNP
  • Protection rating: IP67
  • Switching frequency: 300 Hz
  • Connection: 2 m PVC-cable

₹ 5,500

in stock

Dispatch next working day

Price On Request Price On Request
>
General data
Design
Inductive sensor
Series
AK1/AP
Installation
Non flush
The switching distance refers to the distance at which an object approaching the active surface (depending on the operating principle) causes a signal change.
Switching distance
12 mm
Correction factor K=1
No
Type
Cylindrical and thread
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
30 V
Type of voltage
DC
Output
PNP
Output current max.
400 mA
Output function
1 x NO
The maximum number of times the switching output can change within one second.
Switching frequency
300 Hz
Provides protection against overcurrent conditions.
Short-circuit protection
Yes
Protective function in case of reversed connection of the supply line.
Reverse polarity protection
Yes
Connection principle
3-wire
Mechanical data
Size
M18 x 1
Total length
50 mm
Connection
2 m PVC cable
Material active surface
PBT
Housing material
Nickel-plated brass
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-25 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
70 °C
according to DIN EN 60529
Protection rating
IP67
Application
Factory automation
Further information
Approval
CE
cRUus
Special features
None
Accessories included
2 fixing nuts
Downloads
Documentation
Mounting manual (pdf 357KB)
Datasheet (pdf 957KB)
Approvals/Conformities
EC declaration of conformity (pdf 194KB)
Inductive sensor M.D. Micro Detectors AK1/AP-4A

The AK1/AP-4A inductive sensor from M.D. Micro Detectors with a size of M18 x 1 operates with a supply voltage of 10-30 V DC. The output is a PNP-switching NO contact with a switching frequency of 300 kHz. With a sensing range of 12 mm with flush mounting, the AK1/AP-4A inductive sensor can be used in a temperature range of -25-70 °C. Due to the protection rating IP67 and the 2 m PVC connection cable, the AK1/AP-4A inductive sensor can be used in all applications without demanding environmental requirements.
