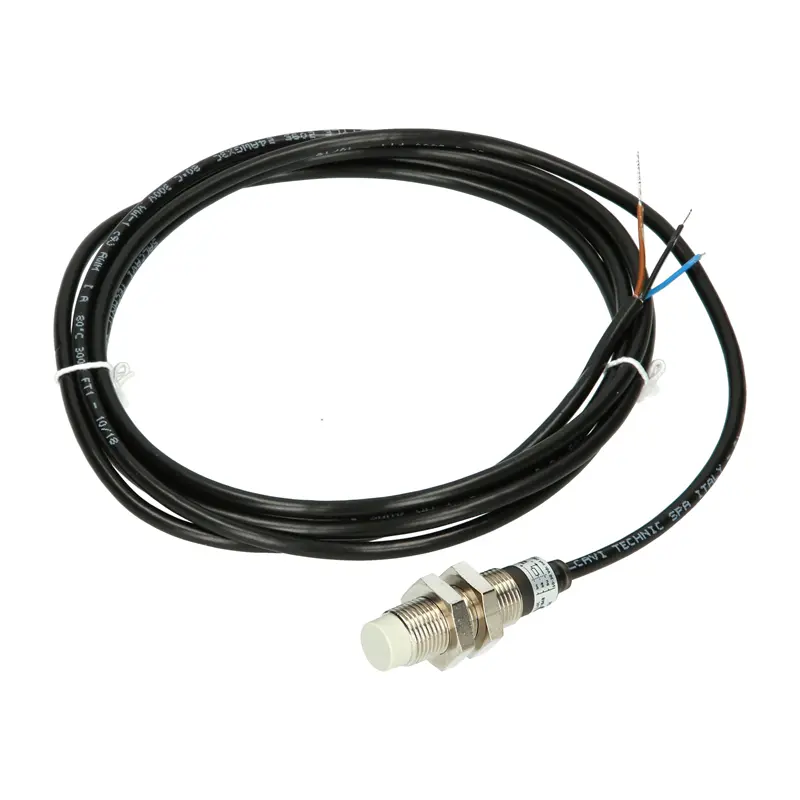

Inductive sensor M.D. Micro Detectors AM1/AP-2A
Inductive sensor M.D. Micro Detectors AM1/AP-2A
Inductive sensor M.D. Micro Detectors AM1/AP-2A
Inductive sensor M.D. Micro Detectors AM1/AP-2A

Inductive sensor M.D. Micro Detectors AM1/AP-2A

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 105603

EAN : 4250738117419

  • Inductive sensor M12 x 1
  • Switching distance Sn> 4 mm [nb]
  • Construction length: 49.8 mm
  • Operating voltage: 10...30 V DC
  • Output function: normally opening PNP
  • Protection rating: IP67
  • Switching frequency: 2,000 Hz
  • Connection: 2 m PVC cable

₹ 3,500

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
AM1/AP
Installation
Non flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
4 mm
Correction factor K=1
No
Type
Cylindrical and thread
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
30 V
Type of voltage
DC
Output
PNP
Output current max.
200 mA
Output function
1 x NO
The maximum number of times the switching output can change within one second.
Switching frequency
2000 Hz
Provides protection against overcurrent conditions.
Short-circuit protection
Yes
Protective function in case of reversed connection of the supply line.
Reverse polarity protection
Yes
Connection principle
3-wire
Mechanical data
Size
M12 x 1
Total length
49.8 mm
Connection
2 m PVC cable
Material active surface
PBT
Housing material
Nickel-plated brass
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-25 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
70 °C
according to DIN EN 60529
Protection rating
IP67
Application
Factory automation
Further information
Approval
cRUus
CE
Special features
None
Accessories (supplied)
2 fixing nuts
Downloads
Documentation
Datasheet (pdf 356KB)
Approvals/Conformities
EC declaration of conformity (pdf 200KB)
CAD data
STEP-File (zip 8KB)
Inductive sensor M.D. Micro Detectors AM1/AP-2A

The AM1/AP-2A inductive sensor from M.D. Micro Detectors with a construction size of M12 x 1 operates with a supply voltage of 10–30 V DC. A PNP-switching normally open contact with a switching frequency of 2 kHz is available as an output. With a switching distance of 4 mm for non-flush mounting, the AM1/AP-2A inductive sensor can be used within the temperature range of -25–70°C. Due to its IP67 protection rating and the 2 m PVC connection cable, the AM1/AP-2A inductive sensor can be used in all applications without difficult environmental requirements.
