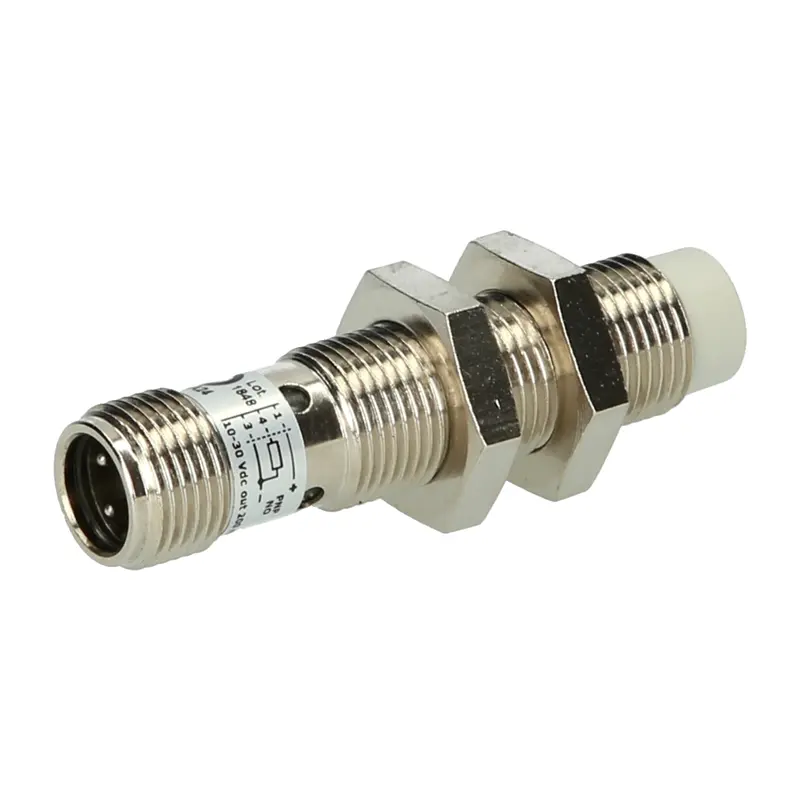

Inductive sensor MD Micro Detectors AM6/AP-4H
Inductive sensor MD Micro Detectors AM6/AP-4H
Inductive sensor MD Micro Detectors AM6/AP-4H
Inductive sensor MD Micro Detectors AM6/AP-4H
Inductive sensor MD Micro Detectors AM6/AP-4H
Inductive sensor MD Micro Detectors AM6/AP-4H

Inductive sensor MD Micro Detectors AM6/AP-4H

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 104327

EAN : 4250738156906

  • Inductive sensor M12 x 1
  • Switching distance Sn: 8 mm [nb]
  • Operating voltage: 10...30 V DC
  • Output function: Normally open PNP
  • Protection class: IP67
  • Switching frequency: 2,000 Hz
  • Connection: M12 connector

₹ 5,000

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
AM6/AP
Installation
Non flush
The switching distance refers to the distance at which an object approaching the active surface (depending on the operating principle) causes a signal change
Switching distance
8 mm
Correction factor K=1
No
Type
Cylindrical and threaded
Function display
Yes
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
30 V
Type of voltage
DC
Output
PNP
The current with which the device can be continuously loaded during operation.
Output current max.
200 mA
Output function
1 x NO
Die maximale Anzahl der Signalwechsel am Schaltausgang innerhalb einer Sekunde.
Switching frequency
2000 Hz
Protection against overcurrent.
Short-circuit protection
Yes
Protective function in case of reversed connection of the supply line.
Reverse polarity protection
Yes
Connection principle
3-wire
Mechanical data
Size
M12 x 1
Total length
52,3 mm
Connection
Connector M12
Material of the sensing face
PBT
Housing material
Nickel-plated brass
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-25 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
70 °C
according to DIN EN 60529
Protection rating
IP67
Application
Factory automation
Further information
Approval
CE
cRUus
Special features
None
Accessories (supplied)
2 fixing nuts
Inductive sensor M.D. Micro Detectors AM6/AP-4H

The AM6/AP-4H inductive sensor from M.D. Micro Detectors with a size of M12 x 1 operates with a supply voltage of 10-30 V DC. The output is a PNP-switching NO contact with a switching frequency of 2 kHz. With a sensing range of 8 mm with flush mounting, the AM6/AP-4H inductive sensor can be used in a temperature range of -25-70 °C. Due to the protection rating IP67 and the M12 connector, the AM6/AP-4H inductive sensor can be used in all applications without demanding environmental requirements.
