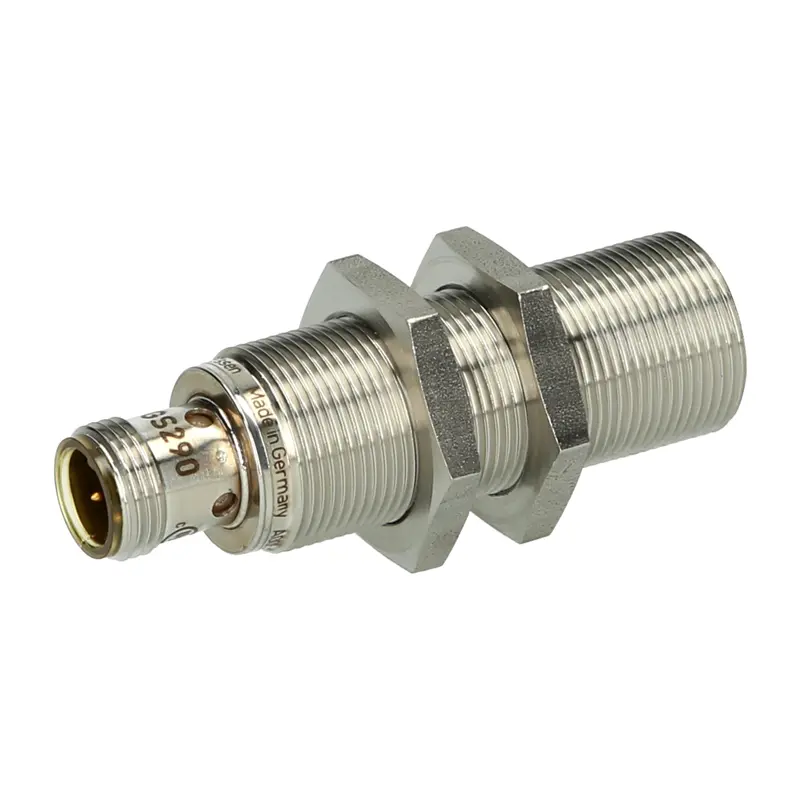

Inductive sensor ifm electronic IGS290 - IGK3008BBPKG/K1/V4A/US-104
Inductive sensor ifm electronic IGS290 - IGK3008BBPKG/K1/V4A/US-104
Inductive sensor ifm electronic IGS290 - IGK3008BBPKG/K1/V4A/US-104
Inductive sensor ifm electronic IGS290 - IGK3008BBPKG/K1/V4A/US-104
Inductive sensor ifm electronic IGS290 - IGK3008BBPKG/K1/V4A/US-104
Inductive sensor ifm electronic IGS290 - IGK3008BBPKG/K1/V4A/US-104

Inductive sensor ifm electronic IGS290 - IGK3008BBPKG/K1/V4A/US-104

★★★★☆(100+customer reviews)

Availability: In Stock

Item number : 104032

EAN : 4021179295185

  • Inductive sensor M18 x 1
  • Switching range [Sn] = 8 mm [f]
  • Correction factor 1 (uniform switching distance to all metals)
  • NO
  • DC PNP
  • Max. Magnetic field strength: 300 mT
  • Overall length 60 mm
  • Protection rating: IP65/IP66/IP67/IP68/IP69K
  • Switching frequency: 2,000 Hz
  • M12 connector

₹ 12,700

in stock

Dispatch next working day

Price On Request Price On Request
General data
Design
Inductive sensor
Series
IGS
Installation
Flush
The sensing range means the distance at which an object approaching the sensing face (depending on the operating principle) causes a signal change.
Sensing range
8 mm
Correction factor K=1
Yes
Type
Cylindrical and threaded
Function display
Yes
Magnetic-field immune
Yes
Magnetic field immunity max.
300 [mT]
Electrical data
The minimum voltage at which the equipment operates reliably.
Operating voltage min.
10 V
The maximum voltage at which the equipment operates reliably.
Operating voltage max.
30 V
Type of voltage
DC
Output
PNP
Output current max.
100 mA
Output function
1 x NO
The maximum number of times the switching output can change within one second.
Switching frequency
2000 Hz
Provides protection against overcurrent conditions.
Short-circuit protection
Yes
Protective function in case of reversed connection of the supply line.
Reverse polarity protection
Yes
Connection principle
3-wire
Protection class
III
Mechanical data
Size
M18 x 1
Total length
60 mm
Connection
Connector M12
Material of the sensing face
LCP
Housing material
Stainless steel (1.4404)
Ambient conditions
The minimum temperature at which the reliable operation of the device is ensured.
Ambient temperature min.
-40 °C
The maximum temperature at which the reliable operation of the device is ensured.
Ambient temperature max.
85 °C
according to DIN EN 60529
Protection rating
IP65/IP66/IP67/IP68/IP69K
Application
Factory automation
Further information
Standard
EC 1935/2004
Approval
CE
cULus
UKCA
Special features
None

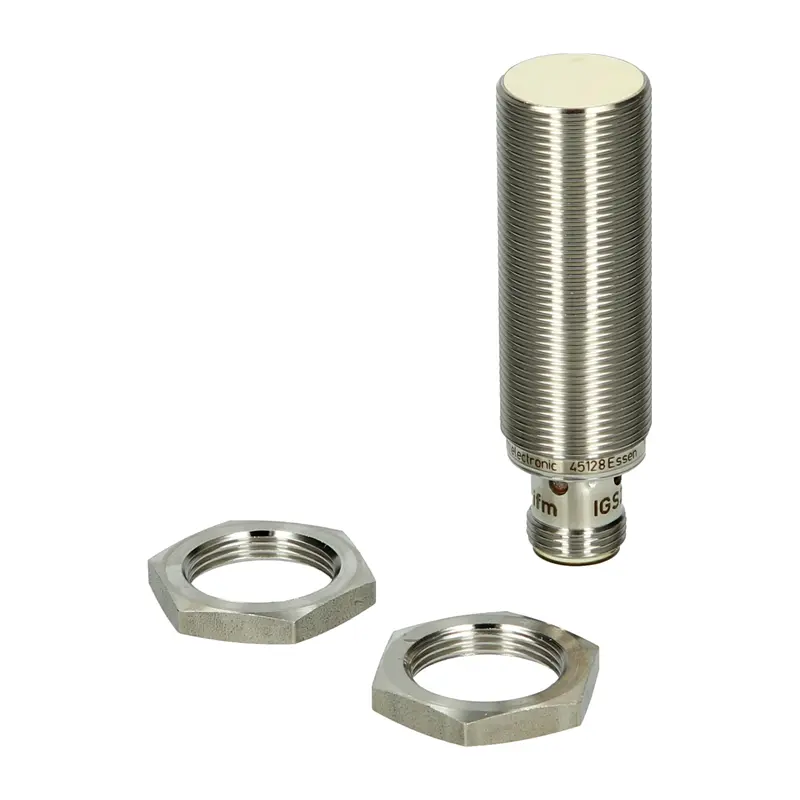

Accessories (supplied)
2 fixing nuts
Downloads
Documentation
Datasheet (pdf 183KB)
Mounting manual (pdf 511KB)
Approvals/Conformities
EC declaration of conformity (pdf 341KB)
CAD data
STEP-File (ZIP 25KB)
Inductive sensor ifm electronic IGS290 - IGK3008BBPKG/K1/V4A/US-104

The inductive sensor IGS290 - IGK3008BBPKG/K1/V4A/US-104 from ifm electronic with a length of 60 mm operates with a supply voltage of 10-30 V DC. A NO PNP contact is available as an output. Thanks to the switching distance of 8 mm with flush installation, the inductive sensor IGS290 - IGK3008BBPKG/K1/V4A/US-104 offers more safety in your applications. Due to the uniform switching distance to all metals, its magnetic field strength of max. 300 mT, 4-position switching status display and standardized M12 connector, the inductive sensor IGS290 - IGK3008BBPKG/K1/V4A/US-104 is often used in industrial, mobile, cooling and lubrication applications.
